Modular 25KW to 250KW UPS

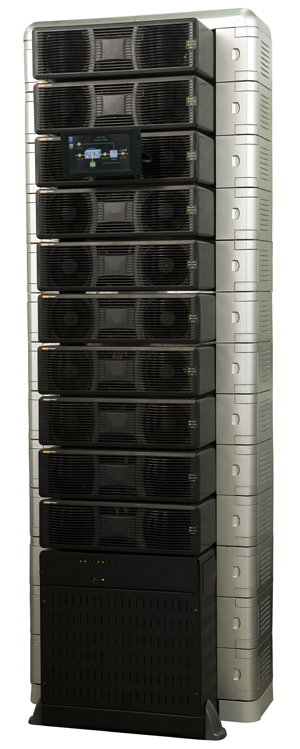

This is a picture of a 250kw modular UPS with 25Kw modules


  • Delivers modular 25-250KW or power

  • Highest Power Density & Smallest Footprint

  • Galvanic Battery Connection

  • 96% Efficiency Rate

  • True Online Batteries

  • Double Conversion

  • Green & Clean Power

  • Light Weigt



Features & Benefits

Studies have shown that the issue of space requirements in today's world is critical. Our Modular UPS delivers extremely high power density = 5kW/ inch3. Modules are each 25KVA/KW 3U and saves space in data centres, IT rooms and other critical hosted sites.

 Truly modular UPS 250KVA/250KW delivers maximum power with the smallest footprint available on the market
 All connections and cables are internal
 Minimum access to the sides and rear of the unit
 250kW capacity modular UPS in one small form factor rack
 Double Conversion True On-line Battery (VFI) - according to the standard IEC 62040-3
 Highest classification with VFI-SS-111 featuring galvanic battery connection between rectifier output an the
 inverter input on a common DC link
 If a module fails, it will not influence the UPS system operation & load availability. It will continue to work
 Flexible Scalability: Ensure your future growth with 3RU 25kW modules (no need to plan for future capacity)
 Minimal Maintenance: Delivering almost zero MTTR (Mean Time To Repair)
 Minimal Downtime: Each 25kW/KVA is entirely sefl-contained & ready for hot swapping; therefore no downtime
 Unity output of 250KVA = 250kW. Suitable for capacitive loads, such as blade servers with low power factors
 Coloured touchscreen controls
 No downtime if controller is removed
 The controller offers intelligent monitoring of UPS parameters including intelligent battery monitoring
 functionality, system voltage, temperature, etc.
 Each system has its own control & history log
 Built in SNMP/TCIP & optional GPSR/SMS
 No additional software or hardware needed to control all the UPS parameters

Screen Shots

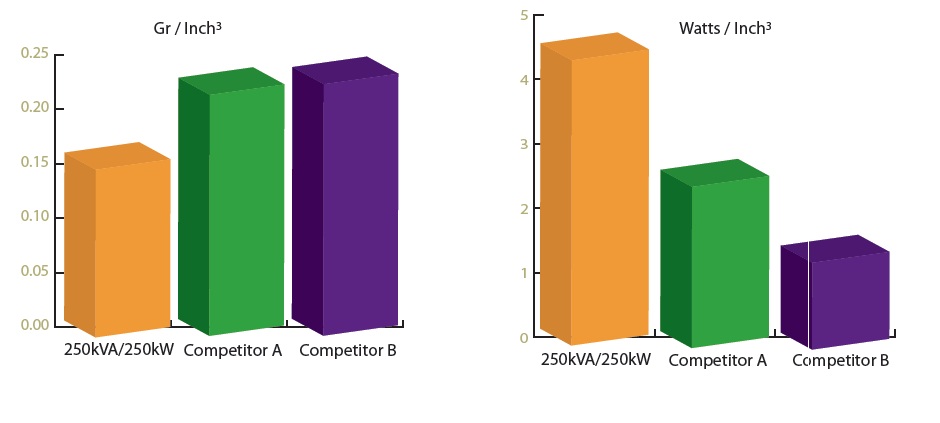

This is a picture of a graph that shows power  density and smallest footprint

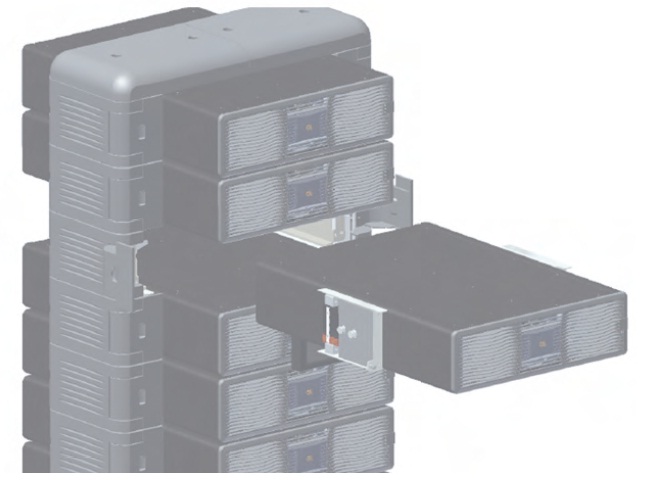

This is a picture of a 250kw/250KVA modular UPS with a 3U module hot swapping

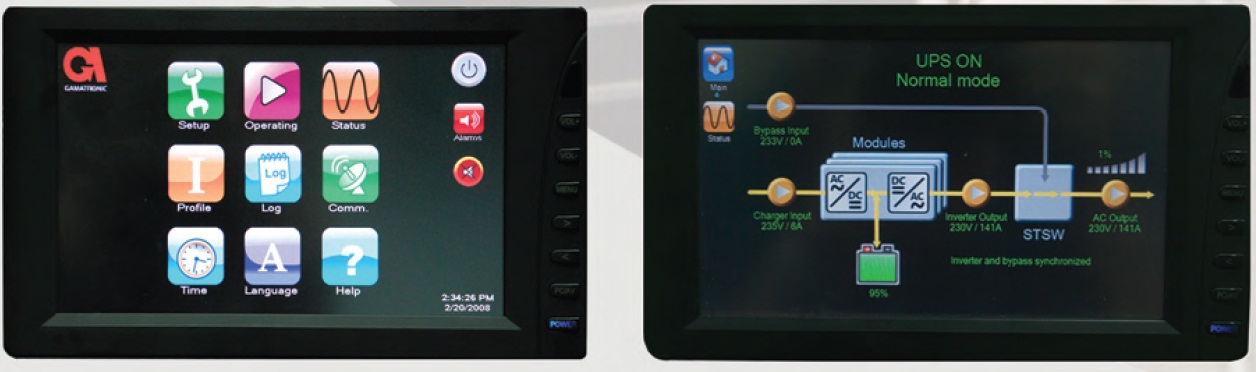

This is a picture of the 250kw/250KVA modular UPS touchscreen controls



Specifications



 Topology

 Online Battery, Double Conversion, VFI



 Construction

 Modular parallel hot-swapped modules



 Operation

 Continuous







 Input

 Voltage

 3 x 400 V + N



 Voltage Range

 -20% & +15%



 Current

 3 x 42A per module - No inrush current at start up



 Frequency

 47 ÷ 63Hz



 Power walk-in

 < 60s



 Power factor

 0.99



 THDI

 5%







 Output

 Rated power

 25KVA/25kW to 250KVA/250kW



 Frequency (in free-running mode)

 50/60Hz ±0.1%



 Frequency tracking range

 Slew rate

 ±1 Hz, ±2 Hz, ±3 Hz (selectable)

 1Hz/sec



 Voltage

 3 x 400 V + N



 Static regulation

 ±1%



 Regulation for unbalanced load

 ±1% for 100% unbalanced load



 Dynamic Response to 100% load step

 ±2%



 Overload

 110%: 10 minutes 125%: 60 seconds, 1000%: 1 cycle



 Waveform

 Sinusoidal



 THD

 Less than 2% for linear load



 Load CF (maximum)

 6:1



 AC-AC Effeciency (nominal)

 Up to 96% at full load



 DC-AC Effeciency (nominal)

 Up to 98% at full load







 Batteries

 DC Link Voltage

 ±340V to ±432V



 Quantity

 64 x 12V



 Type

 Sealed, lead acid, rechargable







 Display



 TFT LCD colour monitor 7" with touch screen inbuilt







 General

 Maximum powe dissipation (PO = 25kW)

 N*1315 W (N*4487 BTU/Hr)



 Ambient temperature

 -10oC to +40oC (operating); -20oC to +60oC (storage)



 Ambient humidity

 95% max non-condensing



 Altitude

 1500m without derating



 Enclosure

 IP20



 Cooling system

 Multi-fan with speed control (forced)







 Standards

 EMC

 EN50091-2 Class A; IEC 62040-2 Class A



 Design

 EN50091-3; IEC 62040-3



 Safety

 EN50091-1; IEC 62040-1-1



 Low magnetic field radiation

 EMF as per ICNIRP







 Dimensions

 UPS type (kW)

25

50

75

100

125

150

175

200

225

250



 Height (cm)

 197



 Width (cm)

 67



 Depth (cm)

 63



 Weight (Kg)

153

184

216

248

280

312

344

376

408

440







 Acoustic Noise

 Noise (dBA) with half load

48

52

53

54

55

55.8

56.4

57

57.5

58



 Noise (dBA) with full load

51

54

55

57

58

58.8

59.4

60

60.5

61





Applications

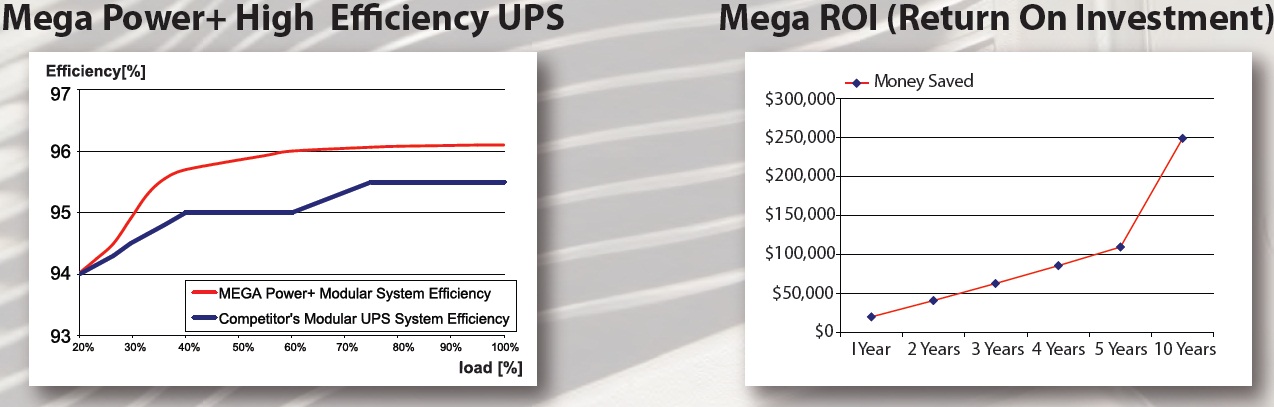

This is a picture of a graph that shows high  effeciency and ROI

Diagrams

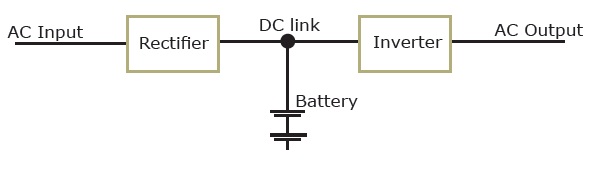

This is a picture of modular ups batter link  topology
