2RU -48V DC 4805XLS16 PDU

-48V DC Switched IP Power Control of multiple DC type equipment.

This is a picture of a -48 VDC Switched PDU with GMX Fuse protection
  • Web enabled HTTP/HTTPS
  • Individual Socket Monitoring
  • Individual Socket Control
  • Fuse &/or Circuit Breaker Builds
  • Temperature & Humidiy Sensing



The 4805 XLS Intelligent PDU & Remote Power Manager minimises the impact of locked-up routers, servers and other network devices on business-critical networks.
CLECs, ILECs, ISPs and enterprises use the Sentry 4805-XLS to manage equipment in remote sites, co-location facilities and network operations centers. They 4805-XLS eliminates the need to dispatch a field service technician for manual intervention when
devices lock-up. Using a 4805-XLS DC PDU, the network operations centre can quickly restart locked-up remote network servers to ensure that the network is fully operational around the clock.
The 48 VDC family provides immediate operational cost savings, including:
» Reduced field service visits
» Improved problem/solution response time
» Improved network availability
» Improved facility security
Eliminate the Need for a Separate Power Distribution Panel
The 4805/35-XLS is an intelligent unit that combines the functions of a power distribution panel and remote power management unit into a compact 2U 19" rackmounted enclosure.
Each power output terminal connection is protected by a GMT or TPC fuse. (The GMT fuse capacity can range from 1/2 to 10 Amps; the TPC fuse from 25 to 70-Amps.) A key application for the 4805/35-XLS is power distribution & remote management for a cabinet of both -48 VDC-powered servers and high-amp routers.
Measurement Features
Use either RS-232 or TCP/IP to monitor the status of key Measurement Values, or use SNMP to receive an alarm when a measurement value is out of a predefined threshold:
» Input Feed/Outlet “On Sense” – Verifies voltage at each power input/outlet connection.
» Load Sense – Provides an accurate, real time recording of the current draw, in amps, for each power outlet circuit.
» Environmental Sensors – Measures the ambient temperature and humidity in an equipment cabinet to prevent damage from hot spots and high humidity.

» NEW! – SSHv2: Secure Shell for secure remote terminal.
» NEW! – SSLv3: Secure Sockets Layer-enabled HTTPS server.
» NEW! – Active Directory w/LDAPv3: User authentication with LDAPv3.
» Remote Power Management: Combine intelligent power distribution and remote power control into a single 2U 19" rack mount enclosure.
» Qty (2) 100-Amp Power Input Feeds: support dual-power supply routers & networking gear.
» Qty (16) 10-Amp Outlet Circuits: protected by GMT fuses – Power-up Sequencing of outlets prevents an in-rush overload.
» Interchangeable Fuses: Replace the fuse value to change the amp rating of each outlet circuit.
» Variable Amperage: Swap the fuse value of each outlet to change the amperage rating.
» TCP/IP Control: to remotely Power On, Power Off or Reboot supported equipment via SSH, SSL, HTTP/HTTPS (HTML Web GUI), SNMP and Telnet.
» RS-232: Local or remote configuration & control.
» PSTN: Optional integrated secure global modem.
» Integrated Sensor Jacks: for (2) Temperature and Humidity Probes.
» NEBS Compliant

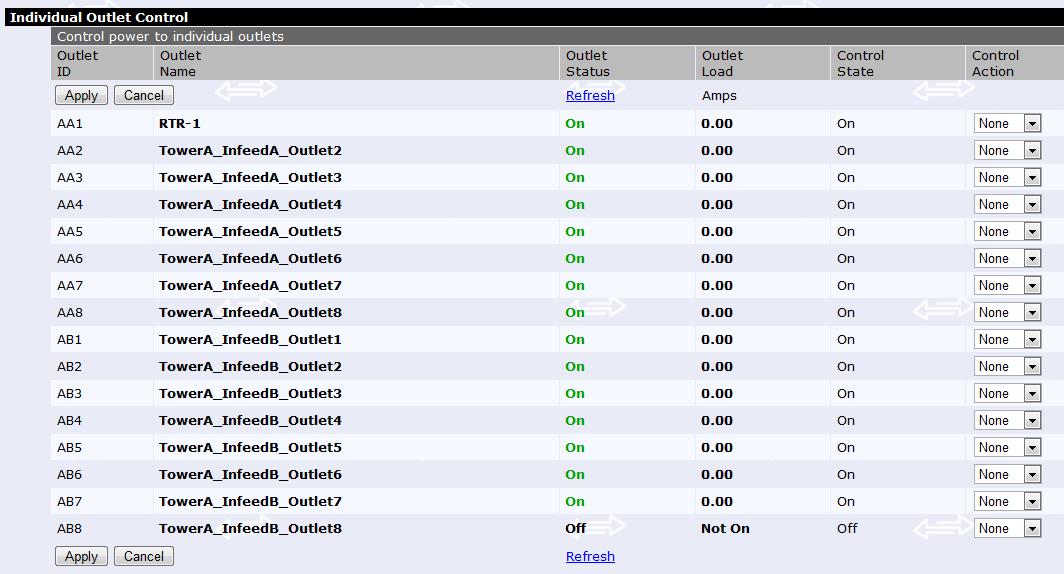

Web Screen Shot

This is a picture of the 48VDC PDU IP interface with individual outlet control and amp monitoring

Technical Specifications

 Power Input
 Qty (2) 100A power input terminal blocks (+/- & N), -48 VDC
 Power Output
 Qty (16) 10A max outlet circuits protected with GMT fuses
 GMT Fuse Values: 1/2, 3/4, 1, 1.5, 2, 3, 4, 5, 7.5 or 10-amps
 Communication Interfaces
 10/100 Base T Ethernet TCP/IP: SSH, SSL, HTTP/HTTPs (HTML web interface), SNMP MIB, Telnet; half/full duplex, auto-negotiating
 Integrated Global Secure Modem 56Kbps (Option C)
 Console RS-232, RJ45
 External Modem RS-232, DB9F Speeds
 RS-232 Data Format
 1200, 2400, 4800, 9600, 19200, 38400 or 57600; 8 data bits; no parity; 1 stop bit
 Access Security
 SSHv2, SSLv3/TLSv1, MD5, Active Directory w/ LDAPv3
 16-character username/password authentication
 Individual accounts with restricted acces rights
 Accessories
 Option C Integrated Global Secure Modem 56kps
 TH Sensor Temperature & Humidity Sensor
 HDMB-2 23" mounting brackets for telecommunciations
 Comformance & Agency Approvals
 TUV-GS marked to EN60950
 cTUV-us marked to UL 1950 and CSA C22.2 No.950-95
 NEBS  GR-1089-CORE
 GR-63-CORE  Section 3.2
 Section 4.2  Section 7
 Section 5.2  Section 9
 Dimensions
  426mm W (w/19" mounting brackets) x 2RU x 400mm D
 Weight
 7.25kg
 Warranty
 2 years





Diagram

This is a picture of the front and rear 2RU -48V DC 4805XLS16 PDU
