6way Switched PDU with individual socket monitoring

Switched Power Control via IP with remote monitoring & management, including remote reboot to connected servers and network equipment for low to high density including blade servers.

This is a picture of a 6 way IEC C19 switched pdu with individual amp monitoring
  • Web enabled HTTP/HTTPS
  • Individual Socket Monitoring
  • 6 x IEC C19 15A Sockets
  • Amp, Kw Monitoring, etc.
  • Temperature & Humidiy Sensing



Features & Benefits

Power & Monitoring

Current Load (A)
Voltage (V)
Power (W)
Hertz (Hz)
Power Factor (Pf)
Kilowatt (Kw)
Kilowatt Hour (Kw/hr)

Communication (depending on model)

10/100 BaseT Ethernet
HTTP/HTTPS
SSLv3/TLSv1
SNMPv1, 2, 3
SSHv2
Telnet
LDAPv3/LDAPS
TACACS+
RADIUS
RS-232 (Serial)

Socket Protection

Per Individual socket fused protection
Branch Circuit Protection (either 2 or 3 banks)
Individual Clip Protection for accidental lead removal)

Alarm Notification

Via Email & SNMP
Get notified on events, power warnings & any chagnes that may occur

Power Control

Remote individual control of each socket or group of sockets
Local Current Draw
Sequential Programmable Power Delays
Firmware Upgradeable without interference to the PDU
Web browser control and configuration

Screen Shots



Individual Outlet Control

This is a picture of a individual outlet control of a switched pdu

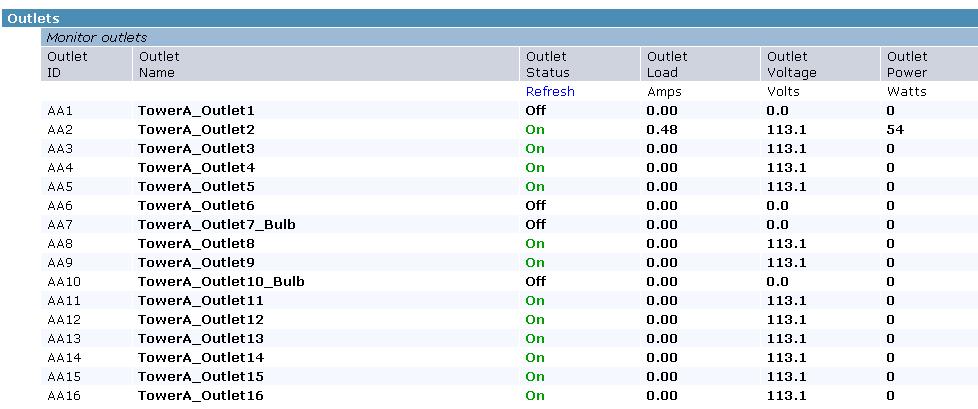

Individual Outlet Monitoring

This is a picture of a individual outlet monitoring of a switched pdu

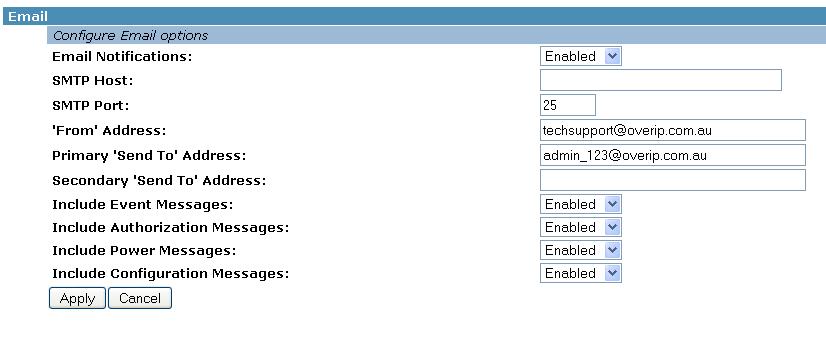

Email Settings

This a picture of email settings for a switched pdu

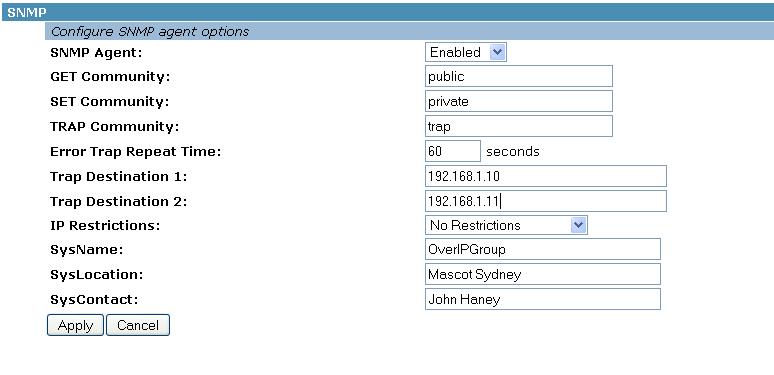

SNMP Configuration

This is a picture of snmp configuration for a switched pdu




Type: 6 way Switched PDU with Individual Socket Monitoring

Dimensions 44.45mmH x 430mmW x 220mmD
Weight 4 kg
Models
240V
Network Interface
Ethernet 10/100 Mbps RJ45
Input Power Interface

Sockets
IEC C20 or hard wired
Voltage
200~250 VAC, 50/60 Hz
Rating
15Amps & 32Amps
Output Power Interface

Socket
8 IEC C19 16A
Voltage
200~250 VAC, 50 /60 Hz
Load
15 Amps each Outlet with 15 Amps or 32 Amps Total (depending on model)
Breaker
Yes
Serial Communication

Console RJ45, RS-232 Level
Dry Contact UPS
Male DB9, RS-232 Level


Remote Control Indicators
Yes
Input Status Indicator
Yes
Supported Web Browser
IE 5.0 + , Netscape 6.2 + , Opera 6+, Mozilla 1.5+,
FireFox 1.0, Other browser which is compatible to above

Network Protocols & Security

TCP/IP, UDP/IP, SNMP V1, SNTP, DNS, DHCP, SMTP,
HTTP, Telnet, TFTP, SSL V3, SSH V1

Operating Environment
Temperature 0° C ~ 40° C
Humidity 10% ~ 80% non-condensed
Warranty Two years



 ※ The specifications may be changed without notice; contact our sales for the latest information.

Applications & Diagrams

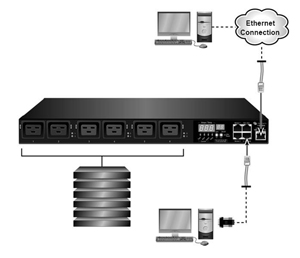

This is a picture of a 6 way switched pdu with IEC C19 sockets application

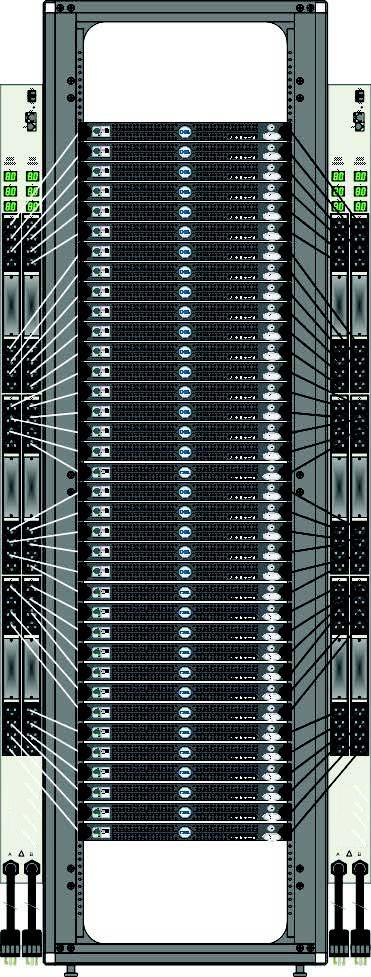

Server Cabinet with 1RU Servers & Switched PDUs

This a picture of 1RU servers in 19

Blade Chassis fully loaded with per phase protection with Switched PDUs

This is a picture of blade servers with switched pdus for multiple phase protection
