8 way Switched PDU

Switched Power Control via IP with remote monitoring & management, including remote reboot to connected servers and network equipment for low to density applications in small offices.

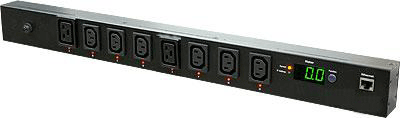

This is a picture of a 8 way switched pdu with IEC C13 & C19 sockets
  • Web enabled HTTP
  • Individual Socket Monitoring
  • 7 x IEC C13 & 1 x IEC C19 15A Socket
  • Amp, Kw Monitoring, etc.
  • True RMS with phase warning overload



Features & Benefits

Power & Monitoring

Current Load (A)
Voltage (V)
Power (W)
Hertz (Hz)
Kilowatt (Kw)
Kilowatt Hour (Kw/hr)

Communication (depending on model)

10/100 BaseT Ethernet
HTTP/HTTPS
SSLv3/TLSv1
SNMPv1, 2, 3
SSHv2
Telnet
LDAPv3/LDAPS
TACACS+
RADIUS
RS-232 (Serial)

Socket Protection

Per Individual socket fused protection
Branch Circuit Protection (either 2 or 3 banks)
Individual Clip Protection for accidental lead removal)

Alarm Notification

Via Email & SNMP
Get notified on events, power warnings & any chagnes that may occur

Power Control

Remote individual control of each socket or group of sockets
Local Current Draw
Sequential Programmable Power Delays
Firmware Upgradeable without interference to the PDU
Web browser control and configuration

Screen Shots



Individual Outlet Control

This is a picture of a individual outlet control of a switched pdu

Individual Outlet Monitoring

This is a picture of a individual outlet monitoring of a switched pdu

Email Settings

This a picture of email settings for a switched pdu

SNMP Configuration

This is a picture of snmp configuration for a switched pdu




Type: 8 way Switched PDU with IEC C13 & C19 sockets

Dimensions 44mmH x 430mmW x56mmD
Weight 2 kg
Models
230V
Network Interface
Ethernet 10/100 Mbps RJ45
Input Power Interface

Sockets
IEC C20 hard wired
Voltage
200~250 VAC, 50/60 Hz
Rating
15Amp
Output Power Interface

Socket
7 IEC C13 10A & 1 IEC C19 16A
Voltage
200~250 VAC, 50 /60 Hz
Load
16 Amps total across entire PDU
Breaker
Yes
Serial Communication

Console RJ45, RS-232 Level
Dry Contact UPS
Male DB9, RS-232 Level


Remote Control Indicators
Yes
Input Status Indicator
Yes
Supported Web Browser
IE 5.0 + , Netscape 6.2 + , Opera 6+, Mozilla 1.5+,
FireFox 1.0, Other browser which is compatible to above

Network Protocols & Security

TCP/IP, UDP/IP, SNMP V1, SNTP, DNS, DHCP, SMTP,
HTTP, Telnet, TFTP, SSL V3, SSH V1

Operating Environment
Temperature 0° C ~ 40° C
Humidity 10% ~ 90% non-condensed
Warranty Two years



 ※ The specifications may be changed without notice; contact our sales for the latest information.

Applications & Diagrams



This is a picture of blade servers with switched pdus for multiple phase protection
