Cool Blade Door

This is a picture of our Cool Blade Door with 4 fans at 3440 cubic metres an hour of air flow
  • Web enabled HTTP/HTTPS
  • Dual Automatic Temperature Controlled Fans
  • 3,440m3/hr fan capacity
  • 4 x Temperature & Humidity Zones
  • Email & SNMP Ready

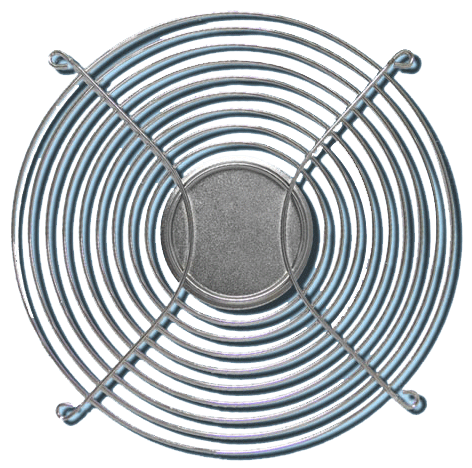

This is a picture of a cool blade door fan guard



Over IP Group’s “Cool Blade Door” series is a high density cooling solution where traditional air distribution methods are no longer effective.

IT equipment will overheat in today’s highly dense stacking of traditional rackmount servers and especially with the introduction of blade servers. This can result in downtime.
Through automatic fan control based upon temperature, the fans will automatically switch on and off based upon programmable thresholds for optimal performance and saving you on power costs.

 Network Ready

 Network Manageable

 View the user interface with a internet browser. Quick access from anywhere on the network

 Email / SNMP

 Capable of sending email and SNMP traps upon programmable warning and critical alarms

 Temperature Monitoring

 Fully Programmable temperature/humidity thresholds to ensure hot spots  are eliminated


 Adaptability

 Mounting

 The door can be retro fitted to existing enclosures when conventional cooling methods no longer work

 Modular

 Future proof your site with fitting the door on a customer to customer basis

 Maintenance

 All components can be accessed for maintenance from the rear so upgrading can be achieved


 Total Cost of Ownership

 Ease of Installation

 An innovative design allows for rapid deployment onto future expansion of existing racks

 Temperature Controlled

 Each bank of fans will not turn on unless the temperature threshold is reached

 High Capacity

 High density fans allows for a higher consolidation of IT equipment and  reducing floor space





 Greener Data Centre

 Greener Centre

 Saving power through programmable thresholds
   Fans remaining OFF until thresholds are met
   Fans turning ON only when the IT equipment reaches warning levels
   Hystersis levels introduced to ensure that cooling performance is maximised
   Network Ready to ensure that maintenance and alerts will be actioned before critical status is reached










This is a picture of our Cool Blade Door with 4 fans at 3440 cubic metres an hour of air flow

This is a picture of a temperature and humidity sensor with dry contacts

This is a picture of a temperature and humidity sensor with dry contacts

This is a picture of a temperature and humidity sensor with dry contacts

This is a picture of a temperature and humidity sensor with dry contacts



Screen Shot of Web Interface

This is a picture of the Cool Blade Door's web interface with 4 temperature zones

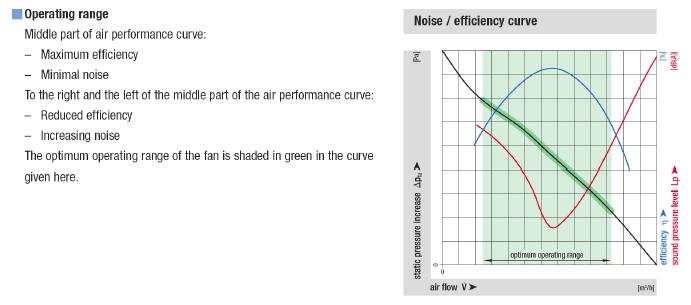

This is a picture of the cool blade door fan specification

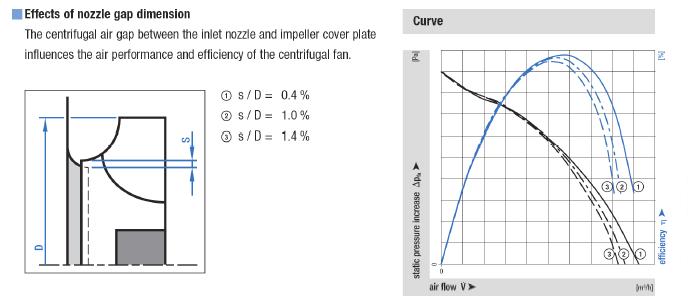

This is a picture of the cool blade door effect of nozzle gaps

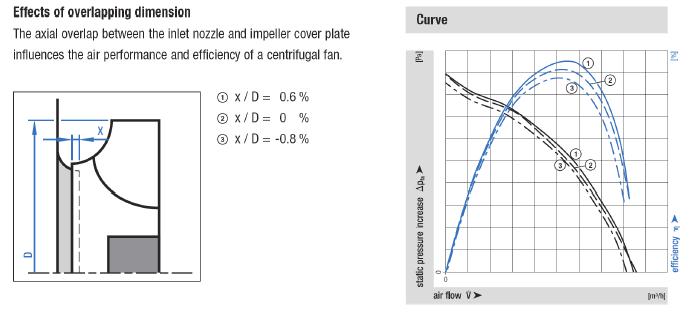

This is a picture of the cool blade door effects of overlapping


Type: Cool Blade on board Monitoring

CPU

16-bit micro controller

RAM

2MB(1Mbit x16)

Flash ROM

2MB(1Mbit x16)

LAN Interface

Auto-sense 10/100Mbps Fast Ethernet ; PoE(Power over Ethernet) enabled *

Serial Port

Four asynchronous serial ports for EMD; Port 1(EMD 1) can also be used for console communication

Relay Output

2 sets; Max. 24 VDC, 1A

DC Voltage Sensor

2 sets; Range: 0~+60 volts ; Accuracy: ± 1%

Water Leak Detector

For connecting water leak sensor line
Voltage output: 9V

Miscellaneous

Real-Time-Clock, Reset button

Power Consumption

12VDC, 2.5A (not include daisy-chain)

Network Protocol

HTTP, SNMP, DHCP, BOOTP, ARP, RARP, Telnet, SMTP, TFTP

MIB Supported

INS MIB

Firmware Upgrade

Network Upgrade
Serial Upgrade (for recovery use)

System Security

IP-based filtering and password protection for operation and administration

Warranty

1 year

LED Display

Green = Power On
Yellow = First 2 Fans are On
Red    = Second 2 Fans are On





This is a picture of a temperature and humidity sensor with dry contacts

Type: Environmental Monitoring Device

Dimensions

2.26(W) x 1.48(D) x 1.15(H) in. / 57.4(W) x 37.6(D) x 29.2(H) mm

Weight

approx. 35g

Temperature Monitoring

Measures temperatures between 0ºC and 80ºC with an accuracy of +1ºC

Humidity Monitoring

Measures relative humidity between 10% and 90% RH with an accuracy of +3%

LED Display

Power/Status

Digital Input

Two inputs (normally-open or closed)

 ※ The specification may be changed without notice; contact our sales for the latest information.

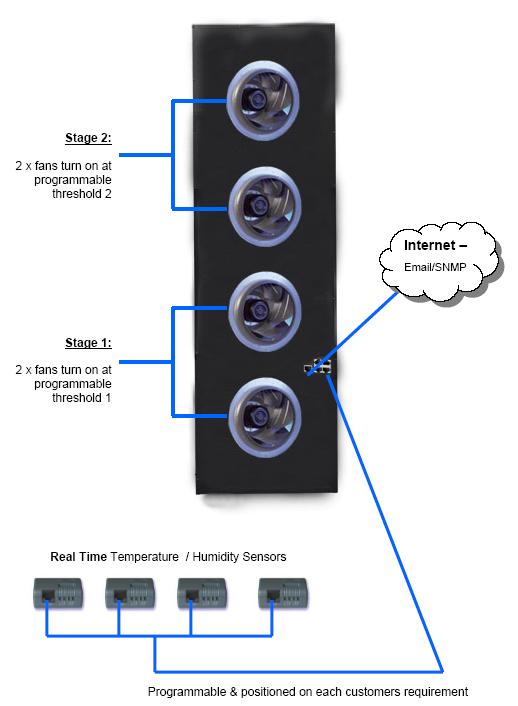

Diagram of how the Cool Blade Door Operates

This is a picture of a cool blade door diagram of how it turns on/off
