 Home > Products > Racks > IP66 & IP55 Electrical Enclosures

 Part Numbers

IP66 & IP55 Electrical Enclosures

 IP18001 to 28

This is a picture of a IP66 electrical enclosure with 2 locks
  1. Polyurethane gasket in the door for high protection
  2. Multi fold on the enclosure to avoid water & other sundries entering into inner core
  3. Door can be hinged left or right
  4. Adjustable orange mounting panel
  5. M8 earth pole mounted on the body, door & mounting panel
  6. Mounting holes at the back of the enclosure, no need for extra drilling holes on site
  7. Bottom sealed removable plate for cable entry



Features

Ideal for mounting various kinds of electronic components, access control panels, circuit breakers in a controlled enclosure with cable entry
Polyurethane gasket in the door for high protection
Multi fold on the enclosure to avoid water and other sundries entering into the inner core
Door can be hinged left or right
Adjustable orange mounting panel
M8 earth pole mounted on the body, door & mounting panel
Mounting holes at the back of the enclosure, no need for extra drilling holes on site
Bottom sealed removable plate for cable entry

Standards

IP66 (enclosures with heights and widths less than 400mm)
IP55 (enclosures with heights and widths over 400mm)
IEC60529, EN60529/10.91, GB4208-93

Surface Finish

Door & body of enclosure - Degreasing, phosphoric, electrophoretic dip-coated printed, static power with textures stove enamel of RAL7035 (grey)
Mounting Panel - SPCC cold rolled steel, degreasing, pickling, phosphoric, electrophoretic dip-coated printed, static powdered with flat coating RAL2000 (orange)

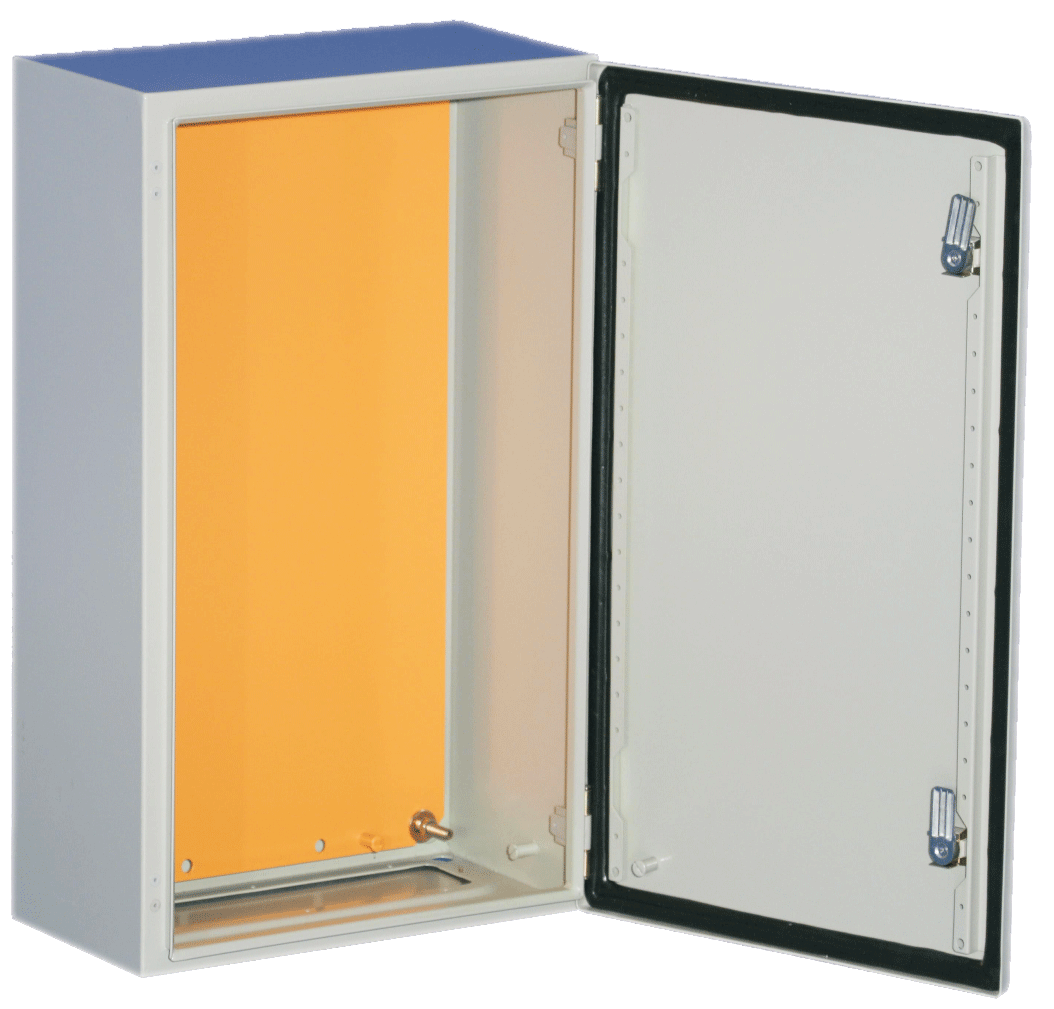

This is a picture of a IP66 eclectrical enclosure with its door open

Dual locking system with door re-inforcement

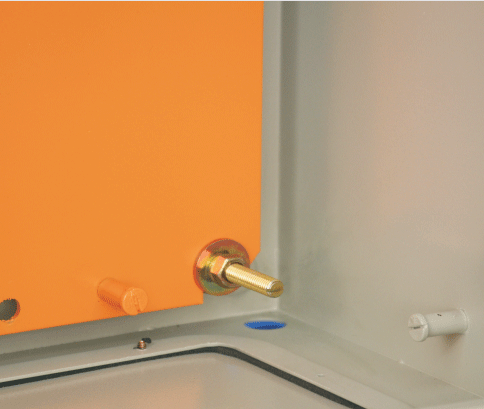

This is a picture of an adjustable backing plate in a IP66 electrical enclosure

Adjustable backing plate for ease of multiple electrical component installations

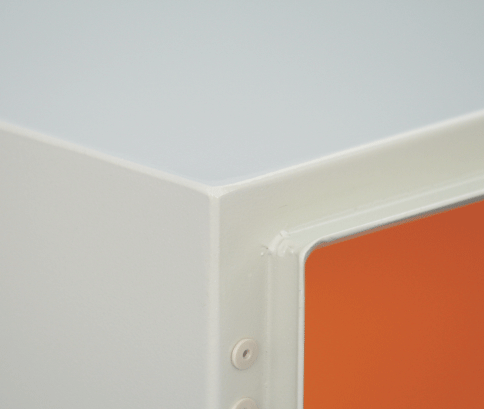

This is a picture of multi fold technology for protection in electrical enclosures

Multi fold on the enclosure to avoid water and other sundries entering into the inner core for ultimate protection

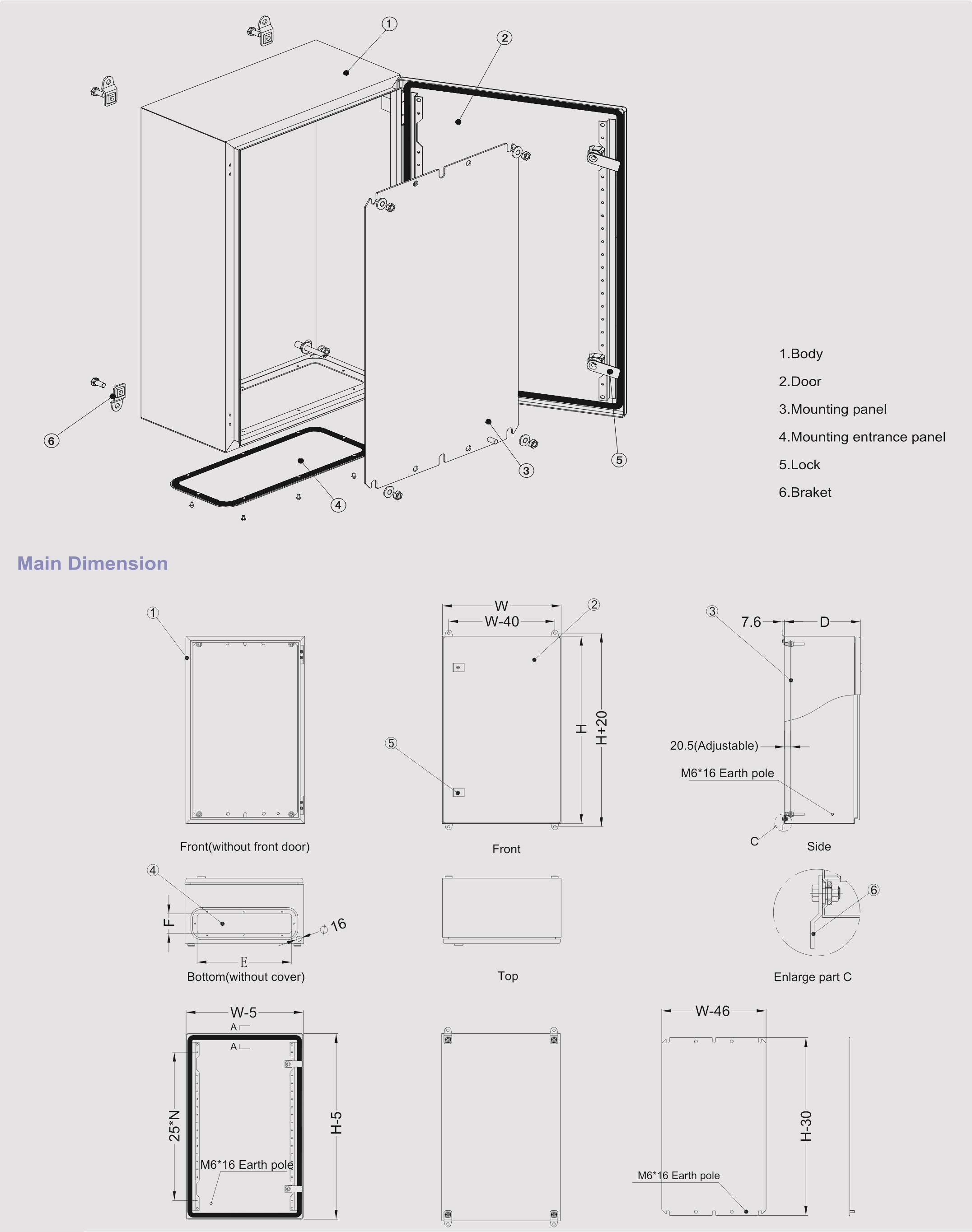

This is a picture of the electrical enclosure in an exploded view diagram



#

Specification

Quantity

Material

Surface Finish

Additional Notes

1 Body 1 SPCC Cold Rolled Steel t1.5 Powder Coated --
2 Door 1 SPCC Cold Rolled Steel t1.5 Powder Coated --
3 Mountng Panel 1 SPCC Cold Rolled Steel t1.5 Powder Coated --
4 Cable Entry Panel 1 SPCC Cold Rolled Steel t1.5 Powder Coated --
5 Lock 2 SPCC Cold Rolled Steel t1.5 Colour Zinc Comes with 1 key
6 Bracket 4 -- --
7 Screw 4 Steel Colour Zinc M8 x 16 for mounting
8 Nut 4 Steel Colour Zinc M8 for mounting
9 Washer 4 Steel Colour Zinc --
10 Plastic Washer 4 -- -- --
11 Mounting Hole Cover 4 -- -- Closing the hole

Model No.

Width
(mm)

Depth
(mm)

Height
(mm)

Hole Size
(bottom plate)

Packing Dimensions
(W*D*H)

Volume
(CBM)

 IP18001
200 120 300 133x43 230*150*330 0.0114
 IP18002
200 155 300 133x43 230*185*330 0.0140
 IP18003 300 210 300 233x45 330*240*330 0.0261
 IP18004 300 210 400 233x45 330*150*430 0.0341
 IP18005 380 155 300 303x63 410*185*330 0.0250
 IP18006 380 210 300 303x63 410*240*330
0.0325
 IP18007 380 210 380 303x63 410*240*410
0.0403
 IP18008 380 210 600 303x63 410*240*630
0.0620
 IP18009 380 350 600 303x113 410*380*630
0.0982
 IP18010 400 210 500 303x113 430*240*530
0.0547
 IP18011 450 210 640 303x113 480*240*670
0.0772
 IP18012 500 210 500 303x113 530*240*530
0.0927
 IP18013 500 210 600 303x113 530*240*630
0.0801
 IP18014 500 250 700 303x113 530*280*730
0.1083
 IP18015 500 300 500 303x113 530*330*530
0.0927
 IP18016 600 210 380 500x113 630*240*410
0.0620
 IP18017 600 210 600 500x113 630*240*630
0.0953
 IP18018 600 210 640 500x113 630*240*670
0.1013
 IP18019 600 210 760 500x113 630*240*790
0.1892
 IP18020 600 250 800 500x113 630*280*830
0.1464
 IP18021 600 250 1000 500x113 630*280*1030
0.1817
 IP18022 600 300 1200 500x113 630*330*1230
0.2557
 IP18023 600 350 380 500x113 630*380*410
0.0982
 IP18024 600 350 600 500x113 630*380*630
0.1508
 IP18025 600 350 760 500x113 630*380*790
0.1891
 IP18026 600 350 800 500x113 630*380*830
0.1987
 IP18027 760 210 760 500x113 790*240*790
0.1498
IP18028 800 300 1000 600x113 830*330*1030 0.2821
