 Part Number

 Automatic Server Lift

 IP62001

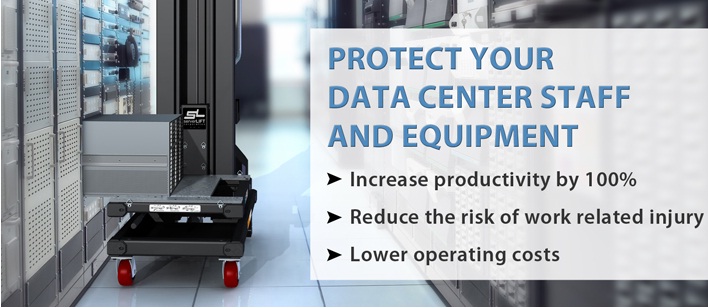

This is a picture of a automatic server lift lifting a server into a rack

Lift 225kgs up to 2.4m in under 60 seconds

Slim 600mm base allows for easy navigation down narrow data center aisles

Side shifting platform adds 150mm of travel to the right or left side for seamless server install

Safe for data centre floors - hydraulics-free, leak-proof battery





 Rated to lift up to 227kg up to 2400mm
 Rigid side shifting shelf fits 19" racks
 Heavy duty structure
 Slim 600mm base
 Compact design - under 1800mm tall
 Meets OSHA guidelines
 Smart Controls with accelerated hoist system
 Dual side electronic control panel
 Onboard UL approved battery recharger
 Brake/stabiliser locking system locks unit in place
 Four easy-roll swiveling castors - Front casters have swivel locks
 CE certified








This is a picture of an automatic server lift for a computer room

This is a picture of a automatic server lift platform extension

This is a picture of a automatic server lift platform extension
  1. Allows the operator to load equipment down to the ground level
  2. Includes a sling assembly for removing servers and related rack mounted equipment from boxes and off of skids
  3. 600mm x 600mm platform area
  4. Fits through 715mm aisles
  5. Supports up to 227kg
  6. Reaches equipment at the floor level
  7. Heavy duty steel construction
  8. Easy installation and removal
  9. Easily removes equipment from cartons and skids with sling and hook accessory

Height

 300mm

Length

 600mm

Width

 600mm

Lowest position of platform

 127mm

Load capacity-centre without

counterweight kit @ centre of platform

 136kg

Load capacity-centre with

counterweight kit @ centre of platform

 227kg

Load capacity of slings

 227kg

Tallest object that can be lifted with sling kit

 1200mm





This is a picture of an automatic server lift for a computer room

 The Automatic Server Lifter promotes a safer work environment and improves overall data centre efficiency. The server lift has a slim 600mm frame which sits on 4 oversized swivelling castors, allowing it to easily manoeuvre through and around data centre aisles.
The unit is designed to load IT equipment from the side rather than the front for easier alignment and install. It features a side-shifting shelf which supports equipment during the transition from the platform into the rails of the rack. With an overall elegant and sleek design, the rugged platform is capable of lifting 227kg of IT equipment to a height of eight feet. Request more information

Height

 1778mm

Length

 1040mm

Width

 625mm

Maximum Lifting Weight

 2440mm

Load Capacity @ Centre

 226.8kg

Load Capacity @ Edge

 136.08kg


Base Specifications



Height

 2440mm

Length

 1040mm

Width

 625mm


Product Platform



Height-Extended

 2440mm

Height-Stowed

 330mm

Overall Thickness

 89mm

Overall Length

 625mm

Overall Width

 625mm

Movable Platform-Length

 609.60mm

Movable Platform-Width

 406.40mm

Movable Platform-Extended

 152.40mm

Pull-Out Handle-Extension

 152.40mm

Pull-Out Handle-Diameter

 25.40mm

Lifting Speed

 4.8m/min

Jog Speed

 0.49m/min

Ground Clearance-Caster

 152.4mm

Ground Clearance-Stabiliser

 31.75mm

Caster Diameter

 127mm

Caster Width

 50.8mm

Total Weight

 176.9kg

Cable Breaking Strength

 1814.4kg

Is your server deployment strategy as efficient as your data center?


Think about how much time and resource your data centre staff spends deploying servers and networking equipment each year. Today's networking switches, routers and blade servers weigh more than 200 lbs. Popular manufacturers such as HP, Dell and IBM recommend using 2 - 4 people to properly perform a typical installation.

According to the most recent statistics reported by the U.S. Bureau of Labor:

"...over 36% of injuries involving missed workdays were the result of shoulder and back injuries".

Server Lift solutions create a safer work environment and help streamline data centre operations. The goal is to eliminate the burden and stress of moving and lifting IT equipment in the data centre.
