Cold Aisle Containment

“How to I get more efficient cooling and power from my Existing Infrastructure?”
Over IP Group’s Thermal Containment (TCT) addresses concerns of “Existing” & “New” IT Infrastructure requirements. The design allows you to “Retro-Fit” to your existing cabinet infrastructure with “No Downtime” necessary.

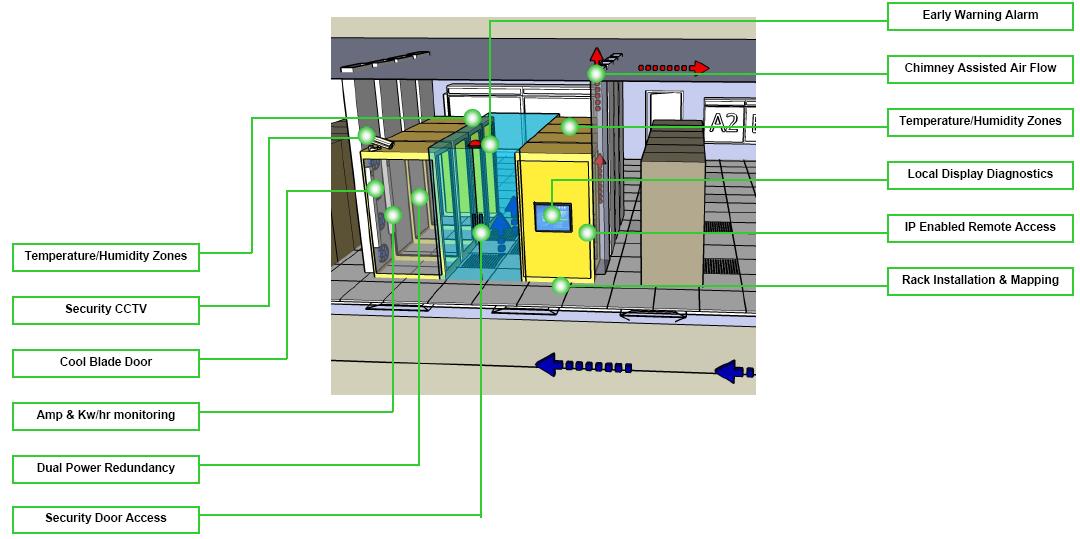

This is a picture of a cold aisle containment with hot aisl cold aisle
  • Save energy from 15% - 67%

  • Maximise airflow dynamics

  • Modular Design

  • Vendor Neutral retrofittable

  • Allows for multiple height cabinets

  • Separate Cold Aisle to Hot Aisle flow

  • Suitable for High Density Blade Servers

  • High Security & Real Time Monitoring



By deploying an OCAC Solution, it can help you save cost in:

  • •    Reducing Floor Space
    •    Increase the density within each rack
    •    Reducing Power Consumption
    •    Reducing equipment purchasing
    •    Equipment can last longer



Whether you are planning:

  • •    A upgrade of your existing infrastructure
    •    A new computer room
    •    Moving to a Data Centre



By deploying the OCAC to your existing infrastructure, you can:

  • •    Cut CRAC unit consumption
  • •    Increase Air Flow Efficiency
  • •    Cut Power Consumption
  • •    Have Equipment running more efficiently
  • •    Get Early warning Alerts with real time monitoring
  • •    Have Automated Reporting to keep you up to date

Screen Shots

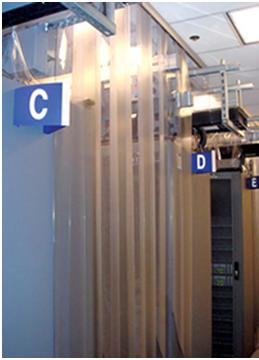

This a picture of cold aisle containment curtains with row labelling

Slash Energy Costs with Better Air Flow Dynamics

  1. Save energy! Data Centre curtains, partitions and Cold Aisle Containment
  2. Save energy on air conditioning by as much as 15% and up to 67% on fans
  3. Protect your mission critical operations
  4. Maximize airflow dynamics and increase the effectiveness of your hot aisle/cold aisle isolation
  5. Modular partitions, ceilings, strip doors and mountings offers solutions for any data centre configuration
  6. Specially formulated vinyl and non-vinyl materials include Polysim 509, a low outgassing, static-dissipative polyurethane that meets ASTM and NFPA fire retardancy requirements
  7. Hardware is designed so that curtains fall away in the case of a fire, allowing sprinklers full operating range
  8. Check with your regional electrical utility about energysaving rebates that can help offset the cost of your system



Data Centre Hard Wall Enclosures

Hard Wall enclosures offer another energy-saving solution for separating cold air aisles.

Hard Walls are an excellent solution for high traffic data centre’s.

They are used for high security in caged environments where frequently visited by co-location customers or VIP personnel.

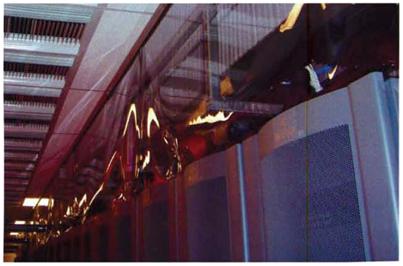

This is a picture of cold aisle containment curtains



This is a picture of high security cold aisle containtment walls and caging

Curtains in the Data Centre

Data Centre Curtains, and all materials, are made from virgin materials to provide extra clear transparency and protection against yellowing and cracking.

Easy Mounting and Assembly

We offer a patented mounting system, including this t-bar ceiling clip that attaches easily and quickly to your existing ceiling grid with no need for drilling.
Other options include bifolding curtains and standard swing and sliding door systems.

Where have you seen this Technology

The technology has been around since 1979, leading innovations in isolation technology and airflow dynamics. Clients include NASA, Boeing and recognisable firms in medical equipment manufacturing, aerospace, electronics assembly, automotive manufacturing and other industries. The  line of curtains and partitions can be found in major data centre’s throughout the world.

Specifications

This is a picture of a cold aisle containment with hot aisl cold aisle

  1. Save energy from 15% - 67%
  2. Maximise airflow dynamics
  3. Modular Design for future expansion
  4. Vendor Neutral retrofittable
  5. Allows for multiple height cabinets
  6. Separate Cold Aisle to Hot Aisle flow
  7. Suitable for High Density Blade Servers
  8. High Security & Real Time Monitoring
  9. Can fit all the leading OEM rack manufactures like:
    HP®, IBM®, Dell™, Fujitsu, Hitatchi, NetApp™, EMC2®, Sun Microsystems®, APC®, Kunrr, Rittal®, Chatsworth (CPI),
    And many more...





Note: All above trademarks, registers, etc belong to their respective brands. If the above information is iin error, please contact us so we can update

Applications & Diagrams

Data Centres

This is a picture of cold aisle containment with additional options

Clean Rooms for Medical Testing Areas

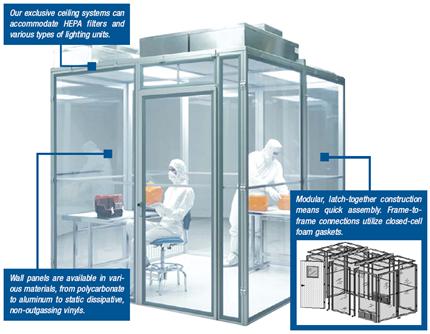

This is a picture of a medical cleaning room enclosure

Other Applications it can be used

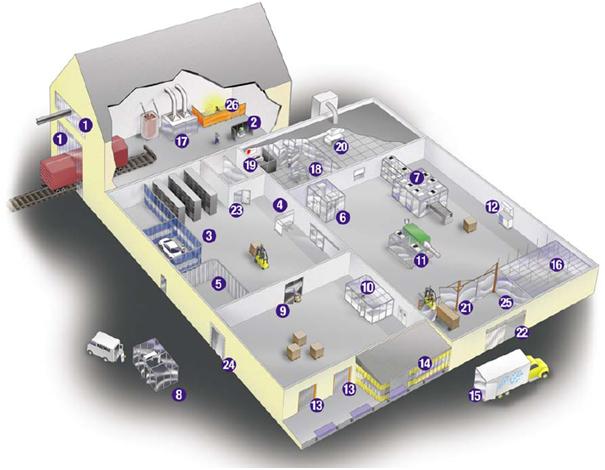

This is a picture depicting where cold aisle can be ultilised in a commercial building

1. Strip doors for freight openings 10. Enclosures for in-plant offices 19. Protective laser curtains
2. Safety barriers and chip screens 11. Portable machinery enclosures 20. Laminar flow benches
3. Spray booths 12. Customized workbenches 21. Custom frames
4. Factory partitions 13. Strips on freight doors guard
against dust and insects
22. Sliding strip doors
5. Plant divider curtains              14. Industrial curtains 23. Refrigeration strip doors
6. Standalone modular cleanrooms 15. Refrigerated truck strip doors
stabilise temperatures
24. Ventilated fresh air strips
7. Cleanroom manufacturing 16. Self-supporting ceiling grids 25. Factory curtains for any height
8. Portable enclosures for
decontamination
17. Protective sound enclosures 26. Welding curtains
9. Dual Flex doors for easy passage 18. Softwall enclosures
