Internal UPS Network Card

This is a picture of a Internal UPS Network Management Card
  • Real Time UPS Health Monitoring
  • Comprehensive UPS Management
  • Web, NMS, Java Applet, Telnet, SNMP Ready
  • Supports Radius & NTLM v1
  • Multiple Networking Platforms
  • Mult Level Event Handling
  • Extensive Log Tracking
  • Programmable Threshold Alerts



As Business becomes increasingly dependent on technology for even fundamental operations, the need for system availability is of paramount importance.

The Internal UPS Network Management Card (also available in short form factor) is designed with real time UPS health monitoring, with comprehensive management and flexibility in configuration via a Web Browser, NMS, Java Applet, Telnet, SNMP, or Hyper Terminal. Protecting up to 250 servers with graceful shutdown software, you can rest assure that in the event of un expected power outage will ensure that your organisations information remains sage.



Features

• Remote and shareable accessibility

• Centralised and distributed manageability

• Web-based interface usability

• Multiple networking platforms availability

• Various device / protocol driver portability

• Multi-level event alerting

• Event log traceability

• Real-time UPS health monitoring

• Comprehensive UPS management and flexible configuration via Web Browser, NMS, Java Applet, Telnet, SNMP, or Hyper Terminal

• Automatic events notification via E-mail, mobile phone (WAP), short message (SMS), SNMP Trap, and PDA

• Graceful shutdown to protect up to 250 servers/workstations from data loss due to power outage

• Automatically assigned IP via DHCP or BOOTP

• Scheduling shutdown/startup/reboot of UPS via remote control

• Regularly records UPS parameters for statistical analysis and event diagnostics

• Standard UPS MIB and USHA-proprietary MIB supported

• Auto-sense to works in the 10/100Mbps fast Ethernet network environment

• Configuration utility simplifies the firmware upgrade process

• Quick and easy installation

• Multiple languages supported

• Friendly user interface

• Support Radius and NTLM v1

• IPV6 supported


Java Applet Screen Shot

This is a picture of UPS Network Card Java Applet Screen Shot

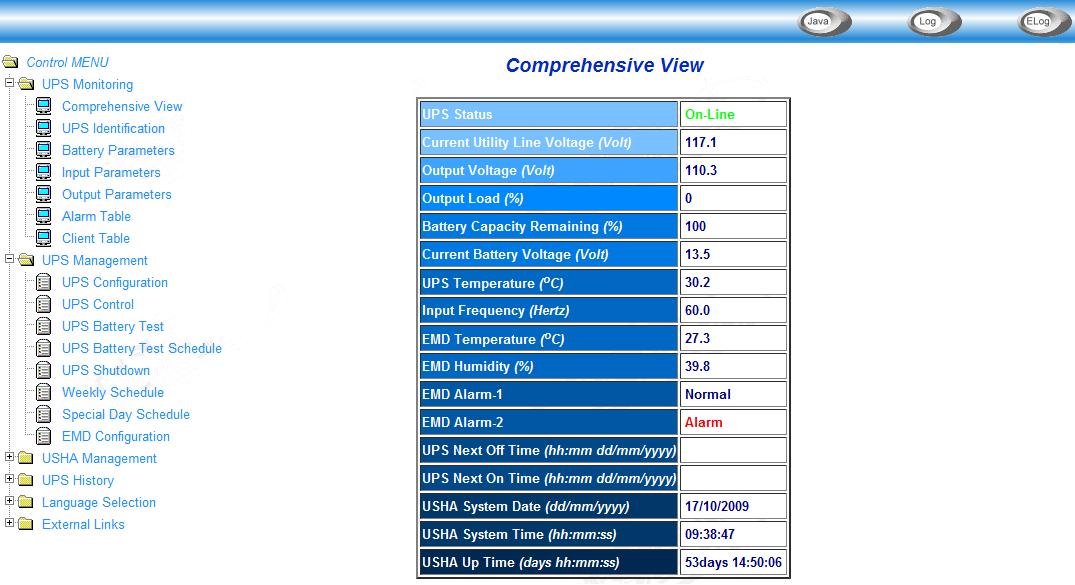

Web Browser Screen Shot

This is a picture of a UPS network management card web browser interface



Specifications

Model

This is a picture of a Internal UPS Network Management Card

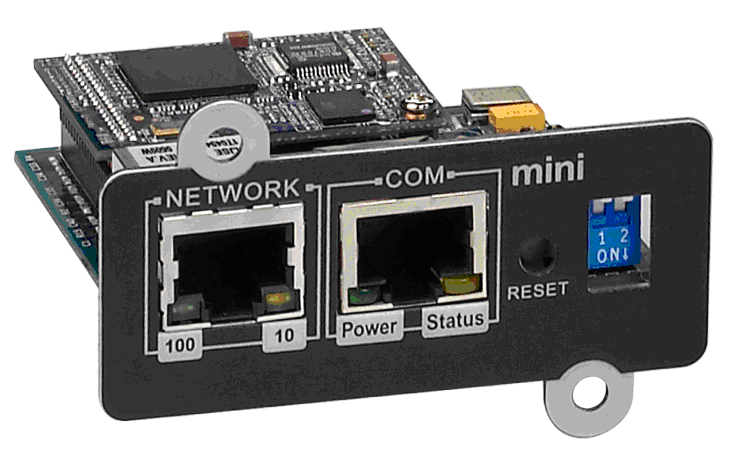

This is a picture of a Mini Internal UPS Network Management Card

 Standard Internal Card
 Mini Internal Card
 Dimensions (L x W x H)  130mm x 60mm x 18.2mm  65.8mm x 60mm 19.5mm
 CPU 16-bit AC117-G, 100MHz  16-bit AC115-G, 100MHz
 Memory  Flash rom 2MB (1 Mbitx16), SDRAM 2MB (1 Mbitx16)
 Network  Auto sense 10/100 Mbps Fast Ethernet via RJ45 connection
 Network Protocol  TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP
 SNMP MIB  RFC1213, RFC1628, USHA MIB
 Serial Port  RJ45 port for Console communication, UPS - Gold Finger (TXD, RXD/RS-232 level)
 LED  Power: Green
 Status: Yellow
 10 LAN: Yellow
 100 LAN: Green
 Power Input DC  +8V ~ +15V
 Power Consumption  3 watts maximum
 Operating Environment  Temperature: 0oC ~ 40oC (min.), Humidity: 10 ~ 80%
 Firmware Uprgade  Network Upgrade, Serial Upgrade (for recvoery use) will not interrupt UPS. Click here to upgrade
 Operating Sytems Supported  • Microsoft Windows 2000,ME,XP/2003,VISTA
 • Novell 4.x ~ 6.x
 • Solaris 8 ~ 10
 • SCO UNIX 5.x
 • SCO UNIXWare 7.x
 • HP_UX 11i
 • IBM_AIX 4.3 ~ 5.x
 • FreeBSD 5 ~ 7
 • Fedora 1 ~ 9
 • Red Hat Linux 9 (upgrading soon)
 • Other Linux-derivative OS (Kernel 2.x or later)
 Extension Device Supported Temperature & humidity sensor with expansion for:
• Motion Detector
 • Smoke Detector
• Security Detector
 • Water Leak Sensor
 • Vibration Sensor
 Languages
  English, Traditional Chinese & Simplified Chinese (please enquire for other languages)
 Approvals  CE, FCC Class B
 Warranty  2 years

Applications & Diagrams

This is a picture of a UPS Network Card Diagram topology
