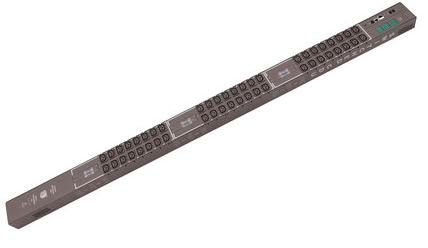

48 way Switched PDU with Dual Power Inputs
Switched Power Control via IP with remote monitoring & management, including remote reboot to connected servers and network equipment for segmenting power and data on separate segments within the rack.
Features & Benefits
Power & Monitoring |
| Current Load (A) |
| Voltage (V) |
| Power (W) |
| Hertz (Hz) |
| Power Factor (Pf) |
| Kilowatt (Kw) |
| Kilowatt Hour (Kw/hr) |
Communication (depending on model) |
| 10/100 BaseT Ethernet |
| HTTP/HTTPS |
| SSLv3/TLSv1 |
| SNMPv1, 2, 3 |
| SSHv2 |
| Telnet |
| LDAPv3/LDAPS |
| TACACS+ |
| RADIUS |
| RS-232 (Serial) |
Socket Protection |
| Per Individual socket fused protection |
| Branch Circuit Protection (either 2 or 3 banks) |
| Individual Clip Protection for accidental lead removal) |
Alarm Notification |
| Via Email & SNMP |
| Get notified on events, power warnings & any chagnes that may occur |
Power Control |
| Remote individual control of each socket or group of sockets |
| Local Current Draw |
| Sequential Programmable Power Delays |
| Firmware Upgradeable without interference to the PDU |
| Web browser control and configuration |
Screen Shots
Individual Outlet Control
Individual Outlet Monitoring
Email Settings
SNMP Configuration
Specifications
|
Type: 48 way Switched PDU with IEC C13 Sockets |
||
| Dimensions | 1775mmH x90mmW x 44mmD | |
| Weight | 10kg | |
| Models |
240V |
|
| Network Interface |
Ethernet 10/100 Mbps RJ45 |
|
| Input Power Interface |
||
| Sockets |
IEC C20 or hard wired |
|
| Voltage |
200~250 VAC, 50/60 Hz | |
| Rating |
15Amps & 32Amps | |
| Output Power Interface |
||
| Socket |
48 IEC C13 10A (24 on A input & 24 on B input) |
|
| Voltage |
200~250 VAC, 50 /60 Hz | |
| Load |
32 Amps Total per input |
|
| Breaker |
Yes | |
| Serial Communication |
||
| Console | RJ45, RS-232 Level | |
| Remote Control Indicators |
Yes |
|
| Input Status Indicator |
Yes | |
| Supported Web Browser |
IE 5.0 + , Netscape 6.2 + , Opera 6+, Mozilla 1.5+, FireFox 1.0, Other browser which is compatible to above |
|
|
Network Protocols & Security |
TCP/IP, UDP/IP, SNMP V1, SNTP, DNS, DHCP, SMTP, |
|
| Operating Environment | ||
| Temperature | 0° C ~ 40° C | |
| Humidity | 10% ~ 80% non-condensed | |
| Warranty | Two years | |
※ The specifications may be changed without notice; contact our sales for the latest information.
Applications & Diagrams
Server Cabinet with 1RU Servers & Switched PDUs
Blade Chassis fully loaded with per phase protection with Switched PDUs
