Surface Mount Circular Cable Brush Seal
The circrle seals within a computer room floor, they are designed for installation in new or existing data centre raised floor tiles, with or without power or communication cables installed. For installations with cables in place, the end of the seal can be removed and placed around the existing cables in a pull apart design. Using polygonal filaments, our brush seal range provides the most effective seal to prevent the leakage of pressurised air around power and communications cables in floor cutouts.
 |
|
|

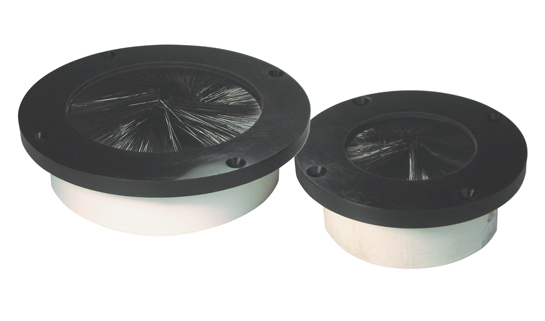

The circular surface-mount cable seal consists of a single brush spiral and a holder |
|
The geometry of the brush provides an intrinsically more efficient seal, completely surrounding the cables |
|
The circular motion provides the most effective type of seal |
|
The circle seal provides the most effective seal to prevent the leakage of pressurised air |

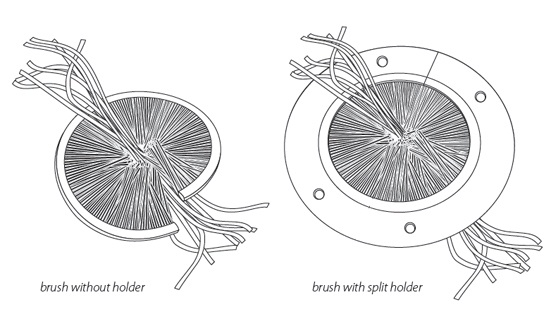

| Split holder enabling installation around existing cables |
| Quick installation with a single circular cut saving time |
| Used arround power cables and high density infrastructure communications cables in floor cutouts |
| Highly used in fiber cable installations due to the brush being non course and will not damage any pertruding equipment |
Model |
Overall Diammeter with edge |
Usable Hole Diameter |
PVC Edge Protection |
Construction |
IPCS1 |
146mm | 81mm | No | Single Piece, sufrace mount |
IPCS2 |
146mm | 81mm | No | Single Piece, sufrace mount |
IPCS3 |
146mm | 81mm | Yes | Single Piece, sufrace mount |
IPCS4 |
206mm | 132mm | No | Single Piece, sufrace mount |
IPCS5 |
206mm | 132mm | No | Single Piece, sufrace mount |
IPCS6 |
206mm | 132mm | Yes | Single Piece, sufrace mount |
