PheobusEye Solar Controller
 |
|
-
Unique PWM （Pulse -Width Modulation）design for charging and loading
-
Bad battery detection
-
LVD (Low Voltage Disconnection) protection
-
Over current/voltage protection
-
Precise lighting control through microcontroller and RTC ( Real Time Clock ）
-
Simple mechanical interface
-
Connect to a personal computer for custom settings, remote monitoring and control
-
Detects day and night using PV panel or RTC
-
Manual test capability
-
Reverse polarity protection
-
Temperature compensation
-
Prevents reverse current from battery at night
-
Over-temperature protection
-
Automatic light- on/off by auto mode or by schedule mode
-
8 lighting schedules/controls
-
Flexible software settings to fit your applications
-
Automatic brightness control for saving power
* Specifications are subject to change without notice.
Product Screen Shot

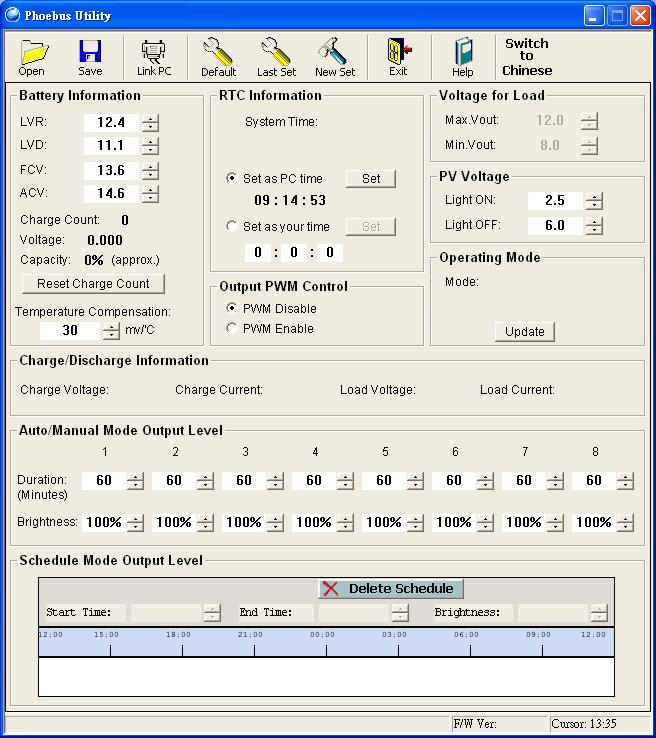

IP Software Screen Shot
Specifications
|
|
Type: Solar Controller PehoubusEye |
|
|
Dimensions |
190(W) x 120(D) x 37(H) mm |
|
|
Weight |
approx. 620g |
|
|
Battery Specification |
12V |
24V |
|
Maximum Inptut Voltage |
DC 22.5V |
DC 45V |
|
Output of Controller |
DC 12 V (8~14.0V) |
DC 24V (18~28.0V) |
|
Float Charge Voltage |
DC 13.6V (13.0~15.0 V) |
DC 27.2V (26.0~30.0 V) |
|
Acceptance Charge Voltage |
DC 14.6V (14.0~16.0V) |
DC 29.2V (28.0~32.0V) |
|
LVD(Low Voltage Disconnection) |
DC 11.1V (10.5~12.5V) |
DC 22.2V (21.0~25.0V) |
|
LVR(Low Voltage Reconnection ) |
DC 12.4V (11.5~13.5V) |
DC 24.8V (23.0~27.0V) |
|
Temperature compensation |
-20 or -30 mV / ℃ |
-40 or -60 mV / ℃ |
|
Maximum charging current |
20A |
|
|
Maximum output current |
20A |
|
|
PV Voltage to Light-on |
2.5 V (adjustable, 0~10V) |
|
|
PV Voltage to Light-off |
6.0 V (adjustable, 0~10 V) |
|
|
Operating temperature |
-20 ℃ ~ 60 ℃ |
|
|
Operating Humidity |
20% ~ 80% |
|
