PheobusEye Solar Controller M1214 / M2415
 |
|
- PWM charge control and three stage charging algorithm.
- Lighting modes: Auto /Program
- Automatic Night & daytime detection ( Light sensor / PV module)
- Timer setting: User can easily set timer 6 / 8 / 10 / 12 Hrs for lighting.
- PWM Control for output level.
- Reverse current: Prevent discharging from battery to PV Module & Wind turbine.
- Reverse polarity protection. ( PV, Wind, battery, DC in )
- Short-circuit protection at load terminals.
- Over current protection ( charge 15A : PV+ Wind/ PV Module only/ Wind turbine only )
- Over current protection ( discharge 15A : Load 1+Load 2/ Load 1 only/ Load 2 only )
- System over-temperature protection
- LVD (Low voltage disconnection) and LVR (Low voltage reconnect)
- Temperature compensation: Temperature sensor can sense battery temperature to automatically adjust the charging rate.
- Equalization charging: a boost charge to stir the electrolyte to extend battery life
- Bad battery detection.
- 12V/24V batteries auto-detect.
- Firmware setting to fix 12V or 24V battery type. (Optional)
- Lighting test function
- Three LED indicate the operating status and alarm/faults.
- Communicate with a PC via RS232 / RS485.
* Specifications are subject to change without notice.
IP Software Screen Shot
Specifications
|
|
Type: Solar Controller PehoubusEye M |
|
|
Dimensions |
220(W) x 120(D) x 43(H) mm |
|
|
Weight |
approx. 700g |
|
|
Battery Specification |
12V |
24V |
|
Maximum Inptut Voltage |
DC 30V |
DC 26V |
|
Maximum Input Power |
200W |
400W |
|
System Operating Voltage |
DC 7.5~17.0 V |
DC 18.0~34.0 V |
|
Output Voltage |
DC 12 V ( 8~14.0V) |
DC 24 V ( 18~28.0V) |
|
FCV (Float Charge Voltage) |
DC 13.5V ( 13.0~14.0 V) |
DC 27V ( 26.0~28.0 V) |
|
ACV (Acceptance Charge Voltage) |
DC 14.4V ( 14.0~15.0V) |
DC 28.8V ( 28.0~30.0V) |
|
LVD (Low Voltage Disconnection) |
DC 11.8V (10.5~12.5V) |
DC 23.6V (21.0~25.0V) |
|
LVR (Low Voltage Reconnection ) |
DC 13.4V (11.5~13.5V) |
DC 26.8V (23.0~27.0V) |
|
Temperature compensation |
-20 mV/℃ for Lead acid type |
-40 mV/℃ for Lead acid type |
|
PV Automatic Mode : Light ON |
2.5V ( Range 0~10 V) |
5.0V ( Range 0~10 V) |
|
PV Automatic Mode : Light Off |
6.0V ( Range 0~10 V ) |
12V ( Range 0~10 V ) |
|
Maximum charging current |
15A |
|
|
Maximum output current |
15A |
|
|
Operating temperature |
-20 ℃ ~ 60 ℃ |
|
|
Operating Humidity |
20% ~ 80% |
|
|
EMC |
CE, FCC (Class B) |
|
*Specifications are subject to change without notice.

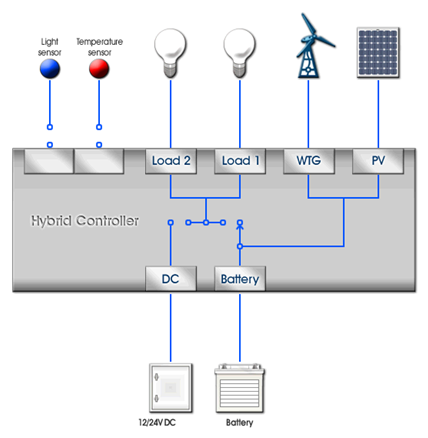

Diagram
