Standby (Modified Sine Wave) UPS

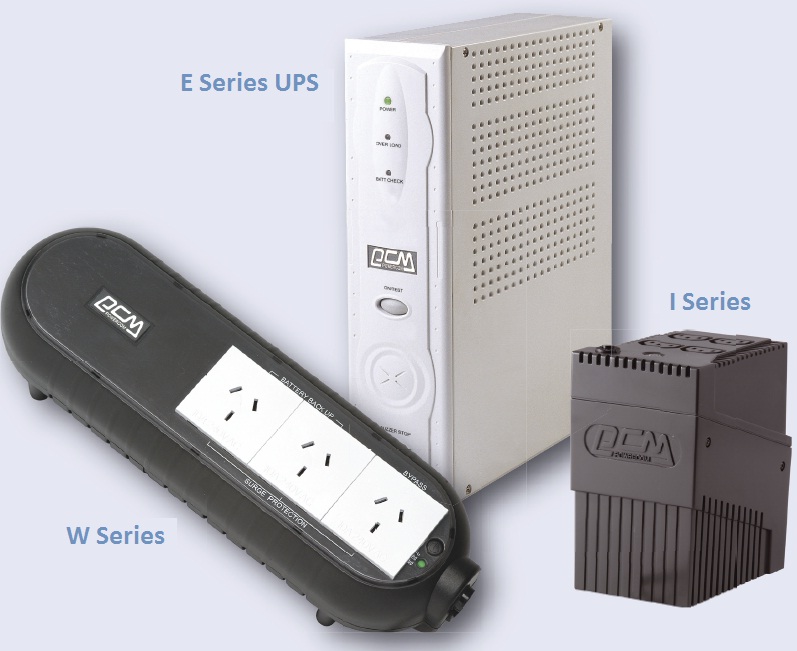

This is a picture of a the standby UPS series
    A basic, economy form of power protection – the standby UPS features protection against power surges only, plus a battery backup.

    This technology is not generally recommended for use in business applications and products of this type (the I, E & W UPS ranges) are generally marketed for the home PC market although there is a growing market for POS applications.



As we become more reliant on what our personal computing power can deliver with the introduction of Windows 7 & Mac OSX, so to does the need to protect our virtal inofrmation from power protection. Imagine loosing critcal photos, docutments, applications when it could have been prevented.

The Standby (modified sine wave) UPS series is designed for those applications that need maximum protection in the 300VA - 730VA range. With its stylish and small form factor look, energy saving sleep mode & bypass output filter for critical loads, the Standby UPS range is ideal.



Designed for personal computing, home systems and SOHO (Small Office Home Office) so you are protected from short circuit and overload occurences. There are 3 models to choose from. The W Series, the E Series & the I Series.


 W Series UPS Features
• 300VA - 850VA
• Only slightly larger than a conventional power board
• Compact case with 3 Aussie three pin outlets including 2 battery backup & surge protected outlets and 1 outlet that protects from surges only
• Fully digitised microprocessor controlled
• EMI/RFI noise fi lter
• Digital microprocessor controlled
• Energy saving UPS “sleep” mode
• Short circuit and overload protected
• Includes Phone/Fax/Internet protection which is compatible with RJ-11 and RJ-45 plugs
• Bundled with UPSMON monitoring & shutdown software (for WIN, Novell & Linux o/s)
• Hot swappable user replaceable batteries
• Covered by a full two-year (RTB) Warranty which also includes the batteries

 E Series UPS Features
• 600VA - 800VA
• Vertical or Horizontal confi guration
• Fully digitised microprocessor controlled
• EMI/RFI noise fi lter
• Energy saving UPS “sleep” mode
• Short circuit and overload protected
• Includes Phone/Fax/Internet protection which is compatible with RJ-11 and RJ-45 plugs
• Bundled with UPSMON monitoring & shutdown software (for WIN, Novell & Linux o/s)
• Hot swappable user replaceable batteries
• Covered by a full two-year (RTB) Warranty which also includes the batteries

 I Series UPS Features
• 385VA - 730VA

• The smallest UPS ever made
• Standby, Modifi ed Sine wave
• Fully digitised microprocessor controlled
• Energy saving (UPS sleep mode)
• 50/60Hz frequency auto sensing
• Buzzer can be muted by pressing "On/Off" button
• Single PCB with reliable design
• AC line OK ("Power" LED always on)
• Cold start (DC always on)
• Back up mode ("Power" LED slow flash)
• Replace battery ("Power" LED fast flash)
• Short circuit and overload protection
• Advanced battery management (ABM)
• Automatic diagnostics & battery check
• Bypass output fi lter for critical load
• EMI / RFI noise filter





This is a picture of a the standby UPS series

W Series UPS Range
 Model    300  500  850
 Output  Capacity (VA)
  300VA  500VA  850VA
   Capacity (W)  1200W  1200W  1200W
   Number of sockets UPS x 2, Bypass x 1 (Australian Three Pin Plug)
   Voltage on battery

Simulated sine wave at 220V / 230V / 240V +/- 5%
   Frequency on battery
  50 or 60Hz +/- 0.3Hz
   Transfer Time  2/4 milliseconds, including detection time
 Input  Voltage (single phase)

220V / 230V +/-25% at line input, 240V +15% / -20% at line input
   Frequency
  50 or 60Hz +/- 10% (auto sensing)
 Protection  Unit Input Circuit breaker or fuse for overload & short circuit protection
   Overload Protection

 AC Mode: If load exceeds 100% of nominal,
Buzzer continue beeping sound.
Backup Mode: UPS automatic shutdown. If overload
exceeds 110% of nominal at 1 sec.
   Spike Protection

480 Joules, 2ms
   Short Circuit UPS output cut off immediately
 Battery
  Type Sealed, maintenance-free lead acid batteries, with
3-6 years typical lifetime

 LED Indication
 N/A
 Battery Check
   Typical Recharge Time
 (to 90% of full capacity)
 4 hours
   Full load backup time
 3 minutes

 Protection Over discharge protection, short circuit protection by fuse
 Physical
 Net Weight kg
  1.9
  2.58  3.6
   Dimesins WxDxH (mm)
  100 x 315 x 68
   110 x 330 x 82
   120 x 420 x 85
 Interface
 Dry Contact
 Sends battery low & power failure signals, and receives shutdown signal from computer

  RS232
 Detect battery low, Schedule UPS on/off, AC input/output power status display.
 Alarm  Battery Back-up
 Slow beeping sound every 4 seconds
   Battery Low
 Backup Mode : Rapid beeping sound every second
   Charge Abnormal
  AC Mode : Rapid beeping sound every second
   Overload  Continue beeping sound
 Environment  Ambient Operation
 3,500 meters max. elevation, 0-95% humidity (No-condensing water), 0-40 deg
   Audible Noise
  < 40dBA (1 meter from surface)

E Series UPS Range
 Model    600  800
 Output  Capacity (VA)
  600VA  800VA
   Capacity (W)

   Number of sockets 2 x AUS 3-pin
 UPS x 2, Bypass x 1
   Voltage on battery

Simulated sine wave at 220V / 230V / 240V +/- 5%
   Frequency on battery
  50 or 60Hz +/- 0.3Hz
   Transfer Time  2/4 milliseconds, including detection time
 Input  Voltage (single phase)

220V / 230V +/-25% at line input, 240V +15% / -20% at line input
   Frequency
  50 or 60Hz +/- 10% (auto sensing)
 Protection  Unit Input  Fuse for overload & short circuit protection
   Overload Protection

 UPS automatic shutdown if overload exceeds
105% of nominal at 20 seconds, 120% at
10 seconds, 130% at 3 seconds.
   Spike Protection

480 Joules, 2ms
   Short Circuit UPS output cut off immediately
 Battery
  Type Sealed, maintenance-free lead acid batteries, with
3-6 years typical lifetime

 LED Indication
 Battery Check
   Typical Recharge Time
 (to 90% of full capacity)
 4 hours
   Full load backup time
 2 minutes
 4 minutes

 Protection Automatic self-test, Over discharge protection,
short circuit protection by fuse
 Physical
 Net Weight kg
  5.9
 3.8
   Dimesins WxDxH (mm)
  250 x 200 x 50
   71 x 194 x 257
 Interface
 Dry Contact
 Sends battery low & power failure signals, and receives shutdown signal from computer

  RS232
 Detect battery low, Schedule UPS on/off, AC input/output power status display.
 Alarm  Battery Back-up
 Slow beeping sound every 4 seconds
   Battery Low
 Rapid beeping sound every second
   Charge Abnormal
 Continue beeping sound every 4 seconds
   Overload Continue beeping sound, Overload LED
Always On
 Environment  Ambient Operation
 3,500 meters max. elevation, 0-95% humidity (No-condensing water), 0-40 deg
   Audible Noise
  < 40dBA (1 meter from surface)

I Series UPS Range
 Model    385  530  730
 Output  Capacity (VA)
  385VA  530VA  730VA
   Capacity (W)  385W  1200W  1200W
   Number of sockets UPS 2 x IEC 320 UPS 2 x IEC 320,
Surge only 2 x IEC 320
   Voltage on battery

Simulated sine wave at 240V +/-5%
   Frequency on battery
  50 or 60Hz +/- 0.3Hz
   Transfer Time < 10 milliseconds, including detection time
 Input  Voltage (single phase)

240V +/-25%at line input
   Frequency
 50 or 60Hz +/- 10% (auto sensing)
 Protection  Unit Input Circuit breaker for overload & short circuit protection
   Overload Protection

 UPS automatic shutdown if overload exceeds 110% at 10
seconds, 120% at 3 seconds
   Spike Protection

480 Joules, 2ms
   Short Circuit UPS output cut off immediately
 Battery
  Type Sealed, maintenance-free lead acid batteries, with
3-6 years typical lifetime

 LED Indication
 N/A
 Battery Check
   Typical Recharge Time
 (to 90% of full capacity)
 6 hours
   Full load backup time
 3 minutes

 Protection Automatic self-test, Over discharge protection,
short circuit protection by fuse
 Physical
 Net Weight kg
  1.6
  2.6  2.6
   Dimesins WxDxH (mm)
  95 x 95 x 158
   95 x 138 x 158
 Interface
 Dry Contact

  RS232
 Alarm  Battery Back-up
 Rapid beeping sound every second
   Battery Low
 Continue beeping sound every 4 seconds
   Charge Abnormal
  AC Mode : Rapid beeping sound every second
   Overload  Continue beeping sound
 Environment  Ambient Operation
 3,500 meters max. elevation, 0-95% humidity (No-condensing water), 0-40 deg
   Audible Noise
  < 40dBA (1 meter from surface)
