Tower Double Online Line Interactive UPS
|
|
|
As Business becomes increasingly dependent on technology for even fundamental operations, the need for system availability is of paramount importance.
The Double Online series UPS is designed for those applications that need maximum protection in the 700VA - 20KVA range. With its high-frequency, double-conversion online topology, providing nonstop clean sine wave power, advanced communications and space-saving tower design.
The Double Online UPS series is the ideal power solution for networks, web servers, telecommunications applications and other critical electronic equipment.
UPS Features |
| • True on-line technology |
| • Pure sine-wave output w/ less than 3% THD |
| • Provides all power protection |
| • Cold start function (DC power on) |
| • Lightning and surge protection |
| • Digital microprocessor controlled |
| • Short circuit and overload protection |
| • Load segmentation receptacles controllable |
| • Fan speed auto control when load varies |
| • Emergency Power Off function |
| • High efficiency mode selectable |
Battery Features |
| • Battery Saver feature - UPS idle mode |
| • Automatic battery charge in UPS off mode |
| • Auto diagnostics & battery check |
| • Optional Extension battery packs |
| • Three Stage Battery Charging |
| • Battery replacement warning |
| • Hot swappable battery by user |
| • Battery remain time display |
| • Extended back up time with battery pack |
Communication |
| • Schedule shutdown & reboot |
|
• RS-232 comms port with monitoring software |
| • UPSMON plus software monitoring |
| • Support USB communication |
| • SNMP Card slot |
| • History record of power failure events |
Voltage |
| • On line output voltage selected |
| • Wide input voltage range |
LCD & Other Settings |
| • Multiple language LCD display |
| • LCD display front panel |
| • Control all functions vis LCD like bypass, diagnostic, manual settings, etc. |
| • Power factor correction |
| • Manual bypass setting |
| • Free run mode setting |
| • EMI/RFI noise filter |
In addition to its proven design, the Double Online UPS series offer an advanced battery management system and sophisticated communications to provide maximum system availability. The battery management system uses a three-stage charging technique that not only doubles the service life of batteries but optimises charging time.
The communications are flexible, allowing for local, network or remote monitoring and management. This includes the latest version of the UPSMON Software Suite, which provides power monitoring and shutdown software across 100s of servers for safe shutdown.
The Double Online UPS series delivers a best-in-class power solution for maximum system availability and peace of mind. That means your critical systems keep working.
Even when presented with the most severe power problems, the series output remains within a remarkable +/-2% of nominal voltage - critical system always receives steady and clean power. In addition, the series transfers to backup mode with no break in power, making it the perfect UPS for equipment in environments plagued by poor power.
The UPS will protect you from power failures, power sags, power surges, under voltage electrical line noise, over-voltage, frequency variation, switching transient and harmonic distortion.
700VA - 3KVA Models
Model with LCD & Temperature Port
|
||||||
| Model | 700 | 1000 | 1500 |
2000 |
3000 |
|
| Input | Capacity (VA) |
700VA | 1000VA | 1500VA | 2000VA | 3000VA |
| Capacity (W) | 490W | 700W | 1050W | 1400W | 2100W | |
| Voltage/Load | 208V, 220V, 230V, 240V (100V, 110V, 115V, 120V, 127V models on request) |
|||||
| Voltage Regulation Range |
240V models - 160V - 276V for 100% load, 140V - 276V for 70% load, 120V - 276V for 0 - 40% load |
|||||
| Frequency | 50/60 Hz Auto Sensing | |||||
| Output | Voltage (on battery) | 208V, 220V, 230V, 240V +/-2% (Selectable Output Voltage) [100V, 110V, 115V, 120V, 127V models on request] |
||||
| Frequency (on battery) | 50/60 Hz +/-0.5% | |||||
| Transfer Time | 0 ms | |||||
| Overload Recovery | Auto transfer to UPS | |||||
| AC to AC Efficiency | 87 % | |||||
| High Efficiency mode (AC to AC) |
> 95 % | |||||
| UPS Design Technology | On-Line/Fully digitised microprocessor controlled | |||||
| Output Wave Form | Sinewave | |||||
| Harmonic Distortion | < 3% of T.H.D. at linear load | |||||
| Crest Factor | 3 : 1 | |||||
| Protection & Filtering | Surge Protection | 240V (IEEEC61000-4-5 level 3) [120V (IEEE C62.41) models on request] |
||||
| Overload Protection | 125% for 1 minutes and 150% for 10 seconds | |||||
| Short Circuit Protection | UPS output cut off immediately or input fuse/circuit breaker protection |
|||||
| Display/Warning | Display (LED model) | UPS on(green), line-mode(green), battery mode(yellow), bypass(yellow), fault(red) |
||||
| Display (LCD model) | Input/output voltage, input/output frequency, on-line mode, back up mode, battery capacity, load level |
|||||
| Audible Alarm |
Beep every 5 sec (for battery back-up) |
|||||
| UPS Fault | Continuous beeping sound and LCD display | |||||
| Communication | RS-232 Serial Port and USB | |||||
| Battery |
Type | Sealed, maintenance-free lead acid batteries | ||||
| DC Voltage V Battery |
24V/12V7.2AHx2 | 36V/12V7.2AHx3 | 36V/12V9AHx3 | 72V/12V7.2AHx6 | 72V/12V9AHx6 | |
| Recharge Time to 90% | 4 hours (90%) |
|||||
| Management | Self-test, adjustable battery transfer points and alarm settings |
|||||
| Battery Protection | Cut off without draining any current when battery is low |
|||||
| Cold Start (DC start) | Yes | |||||
| Back Up Time |
7 minutes |
7 minutes | 6 minutes |
7 minutes |
6 minutes |
|
| Physical | Input lnlet | IEC 320 (240V) (NEMA 5-15 (120V) on request | ||||
| Receptacles | IEC 320 (240V) (NEMA 5-15 (120V) on request |
|||||
| Total Receptacles (UPS+Surge/Surge) |
4 (240V) 6 (120V) |
8(240V) 12 (120V) |
||||
| Dimmensions (mm) (w x d x h) |
152 x 420 x 238 |
225 x 425 x 360 |
||||
| Net Weight kg | 13.5 | 16.2 |
17.0 |
31.1 | 33.0 |
|
| Shipping Weight kg | 15.5 | 18.2 | 19.0 | 33.6 | 35.5 | |
| Environment | Operating Temperature | 0 - 40°C | ||||
| Storage Temperature | -20 - 50°C | |||||
| Altitude | 3,500 metres maximum | |||||
| Audible Noise (1m distance) | <40dBA |
|||||
| Relative Humidity | 0 - 95% humidity, non-condensing | |||||
| Conformance | Safety | UL 1778, CE |
||||
| EMC (EMS/EMI) |
IEC 61000-4, FCC Part 15, CISPR 22 | |||||
| Warranty | 2 years |
|||||
6KVA - 20KVA Models
Model with LCD & Temperature Port
|
|||||
| Model | 6000 |
10000 |
15000 | 20000 |
|
| Input | Capacity (VA) |
6000VA | 10000VA | 15000VA | 20000VA |
| Capacity (W) | 4200W | 7000W | |||
| Voltage/Load | 208V, 220V, 230V, 240V (100V, 110V, 115V, 120V, 127V models on request) |
||||
| Voltage Regulation Range | 240V models - 160V - 276V for 100% load, 140V - 276V for 70% load, 120V - 276V for 0 - 40% load |
||||
| Frequency | 50/60 Hz Auto Sensing | ||||
| Output | Voltage (on battery) | 208V, 220V, 230V, 240V +/-2% (Selectable Output Voltage) [100V, 110V, 115V, 120V, 127V models on request] |
|||
| Frequency (on battery) | 50/60 Hz +/-0.5% | ||||
| Transfer Time | 0 ms | ||||
| Overload Recovery | Auto transfer to UPS | ||||
| AC to AC Efficiency | 87 % | ||||
| High Efficiency mode (AC to AC) | > 95 % | ||||
| UPS Design Technology | On-Line/Fully digitised microprocessor controlled | ||||
| Output Wave Form | Sinewave | ||||
| Harmonic Distortion | < 3% of T.H.D. at linear load | ||||
| Crest Factor | 3 : 1 | ||||
| Protection & Filtering | Surge Protection | 240V (IEEEC61000-4-5 level 3) [120V (IEEE C62.41) models on request] |
|||
| Overload Protection | 125% for 1 minutes and 150% for 10 seconds | ||||
| Short Circuit Protection | UPS output cut off immediately or input fuse/circuit breaker protection |
||||
| Display/Warning | Visual Display (LED model) | UPS on(green), line-mode(green), battery mode(yellow), bypass(yellow), fault(red) |
|||
| Visual Display (LCD model) | Input/output voltage, input/output frequency, on-line mode, back up mode, battery capacity, load level |
||||
| Alarm (Battery back-up) | Beep every 5 sec | ||||
| UPS Fault | Continuous beeping sound and LCD display | ||||
| Communication | RS-232 Serial Port and USB | ||||
| Battery |
Type | Sealed, maintenance-free lead acid batteries | |||
| DC Voltage (V) Battery (2U) | |||||
| Recharge Time to 90% | 4 hours (90%) |
||||
| Management | Self-test, adjustable battery transfer points and alarm settings |
||||
| Battery Protection | Cut off without draining any current when battery is low |
||||
| Cold Start (DC start) | Yes | ||||
| Back Up Time | 240V/12V7.2AHx20 |
240V/12V9AHx20 | |||
| Physical | Input lnlet | Hardwire | |||
| Receptacles | Hardwire |
||||
| Total Receptacles (UPS+Surge/Surge) |
Hardwire | ||||
| Dimmensions (mm) w x d x h |
257 x 590 x 570 |
257 x 590 x 700 |
|||
| Net Weight kg | 86.0 | 112.0 | |||
| Shipping Weight kg | 97.0 | 122.0 | |||
| Environment | Operating Temperature | 0 - 40°C | |||
| Storage Temperature | -20 - 50°C | ||||
| Altitude | 3,500 metres maximum | ||||
| Audible Noise (1m distance) | <55dBA |
||||
| Relative Humidity | 0 - 95% humidity, non-condensing | ||||
| Conformance | Safety | UL 1778, CE |
|||
| EMC (EMS/EMI) |
IEC 61000-4, FCC Part 15, CISPR 22 | ||||
| Warranty | 2 years |
||||

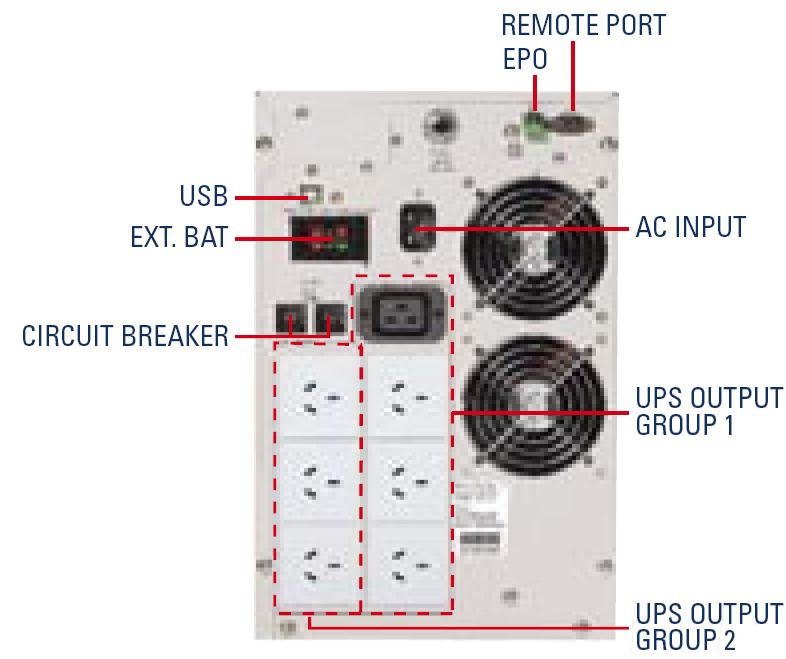

1. 15 LCD Display: Easy viewing of UPS status from LCD panel including:
| • Ouptut Voltage | • Output Load (%) | • Battery Charge (%) |
| • Output Frequency | • Output Watt (W) | • Temperature (oC) |
| • Input Voltage | • Output VA | • Battery Pack Number |
| • Input Frequency | • Output Currency (A) | • Rating (VA) |
| • Battery Voltage | • Back Up Time (Minute) | • CPU Version |
2. 14 UPS parameter settings:
| • Output Voltage Set | • Manual Bypass | • Site Failure Set |
| • Input Frequency Set | • Outlet Segment Set | • Language Selection |
| • Input Bypass Set | • Battery Test | • Generator Option Set |
| • Free Run Set | • Silence Mode Set | • RS232 Control |
| • High Efficiency Mode | • Battery Cabinet Set |
3. SNMP Card Slot
4. Extended Battery Pack (EBC)
5. USB Port
Connecting the UPS to your computer is accomplished through the USB port on the back of your computer. USB compliant hardware and operating system will be necessary including installation of a UPS driver. The serial port cannot be used when using the USB port. The USB cable is standard and can be bought separately.
6. EPO Port (emergency power off)
A customer-supplied switch located remotely can be used to open the EPO connection and allows UPS output receptacles to be switched off. Since the EPO shuts down the equipment immediately, orderly shutdown procedures are not followed by any power management software.
7. Load Segments (700 - 3000 VA)
The power management software controls the sets of receptacles known as load segments which provide organized shutdown and startup of the equipment. Less critical equipment can be turned off during power outages saving battery power for critical loads. The load group status can be viewed from the LCD display and can be changed if necessary. These load segments are usually handled with the UPS management software.
