Vendor Neutral External UPS Network Card

Advantages

• New standard mini dimension
• Superior network interface
• Multiple Network protocols supported
• Standalone embedded system. No PC reruired
• Multi-network protocol communication protocols supported
• Multi-language web page supported
• Web based access to facilitate easy monitoring and control of UPS
• 10/100Mbps ethernet auto sense



UPS Supported

• Supports dry contact
• Smart UPS
• Supports MegaTec
• SEC protocols
• Supports most vendors single phase UPS
• Supports most vendors three phase UPS



Notifications Supported

• TRAP notification
• SMTP Email notification without PC being present
• Pager notification via SNMPView



LCD On Board Display

• Network settings (IP, Gateway, Subnet Mask)
• Input Status (Voltage, Frequency)
• Output Status (Voltage, Frequency & Loading)
• Battery Status (Voltage)
• UPS Temperature



Free Bundle Software

• SNMPView: Simple NMS
• Supports all Windows OS
• Multi-Mon funtcion supported to enable the monitoring of multiple UPS on one interface
• In case of power events, auto set alert through TRAP, email & pager notifications
• ClientMate: SNMP unattended shutdown application for all Windows OS
• Windows Service / Broadcast message functions supported
• MIB file provided for compiling to NMS
• Internet time sync supported



Multi Monitoring Utility

• All SNMP compatible NMS
  Telnet & SNMPView in Windows
• Browser for Web Server



Network Protocols Supported

• Support Multi-Network protocols
• TCP/IP applications like:

SNMP
Web Server (HTTP)
Telnet
Email (SMTP)
Internet Time Sync (SNTP)
Modem Dial-in (PPP)
DNS
DHCP
PDA
WAP/GPRS



Notifications Supported

• HP OpenView
• SUN SunNet Manager
• IBM Trivoli
• Novell NMS
• MegaTec SNMPView
• Other SNMP Compatible NMS's

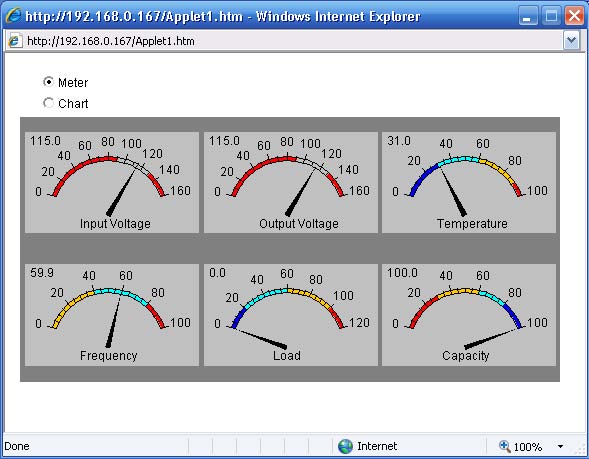

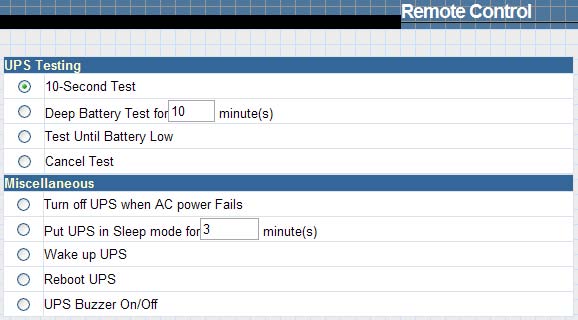

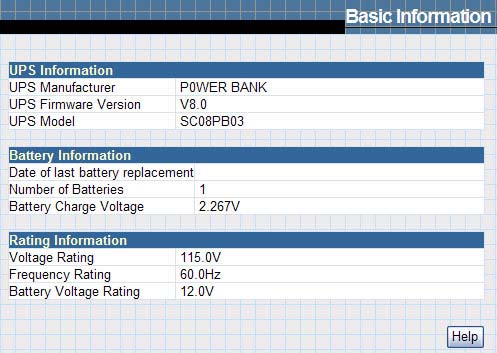

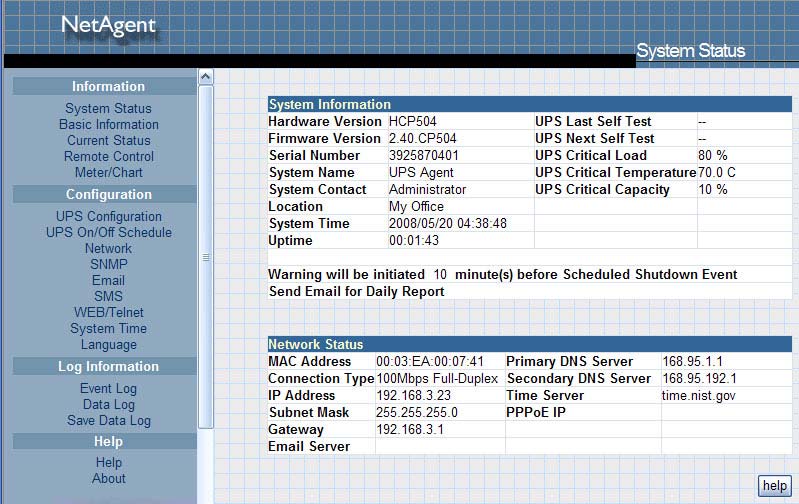

Web Screen Shots

Specifications

Model	Vendor Neutral External UPS Card
Dimensions (L x W x H)	63mm x 48mm x 21mm
CPU	ARM 50 MHz 32Bit
System Clock	25MHz / 50MHz
Port	1 Port
Flash Memory	1MB
SDRAM	8MB
Web Multi language	Yes
LED	6
Power Supply	4.5V ~ 7V DC, 250mA Maximum
Ethernet Throughput	808 Kbytes per second
Ehternet Latency	0.89 Milliseconds
Operating Voltage	3.3 Volt
Watch Dog	Hardware Watchdog
LAN Interface	10 / 100 Mbps UTP
LAN Protocol	TCP/IP, HTTP, SMTP, SNTP, DHCP, Telnet, BOOTP, DNS, DDNS, PPPoE, WAP, PDA, SNMP RFC 1628 MIB, PPC MIB Ehternet Upgrade firmware
Weight (g)	75 grams
Connector	9 Pin D-SUB Connector
LCD Panel	Yes

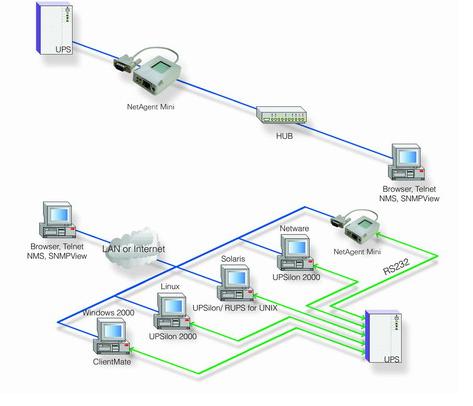

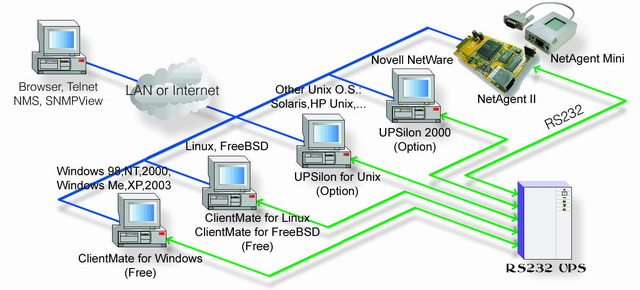

Diagrams
