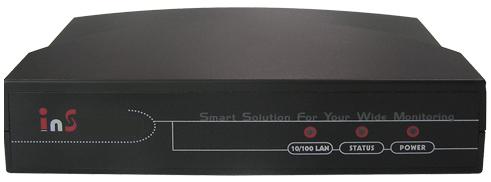

CREMS 2 Port Monitoring Device

The INS range is an innovative remote environmental monitoring solution for critical facilities. It is SNMP enabled, web-based monitors with alert notification to prevent abnormal conditions or disasters in advance. The device monitors environmental conditions, such as temperature, humidity, voltage and other factors. It can be used in data centres through to remote rural sites.

Real-time temperature/humidity and other environmental conditions monitoring

Monitors the status of four user-provide contact devices to protect your critical equipments

Management & flexible configuration via Web Browser, NMS/BMS , Java Applet, Telnet, SNMP or Hyper Terminal

Automatic events notification via E-mail and SNMP Trap

Regularly records environmental parameters for statistical analysis and event diagnostics

Automatically assigned IP via DHCP or BOOTP

Auto-sense to works in the 10/100Mbps fast Ethernet network environment

Configuration utility simplifies the firmware upgrade process

Quick and easy installation (Hot-swappable)

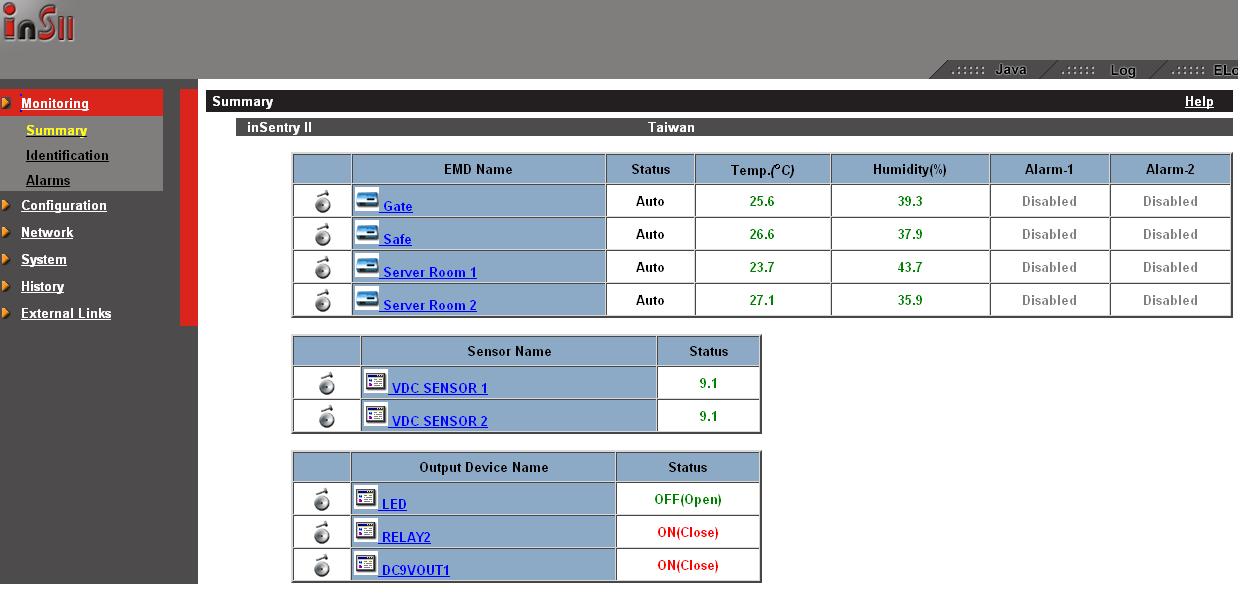

Web Browser Screen Shot

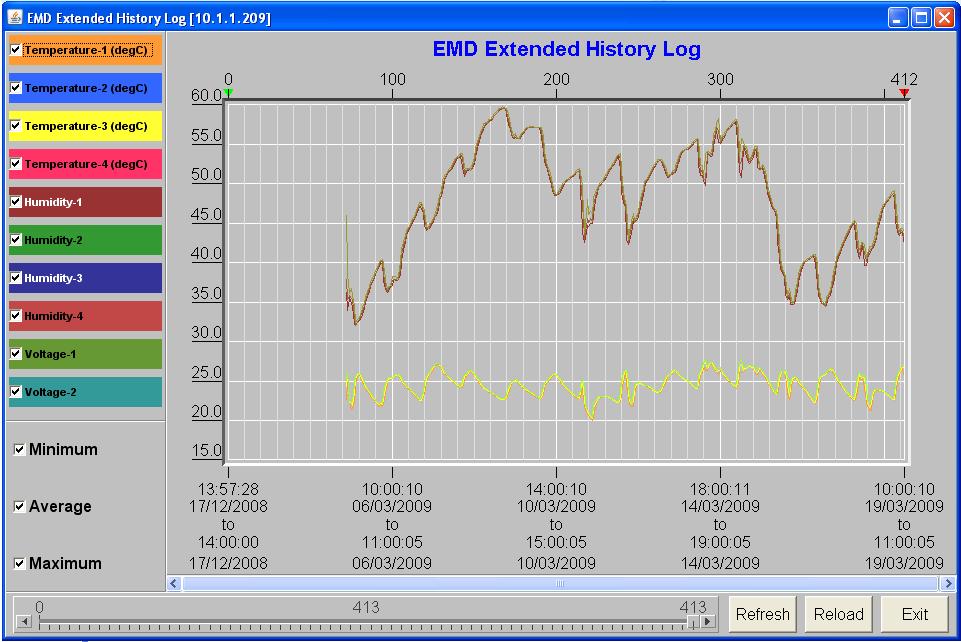

Java Applet Screen Shot

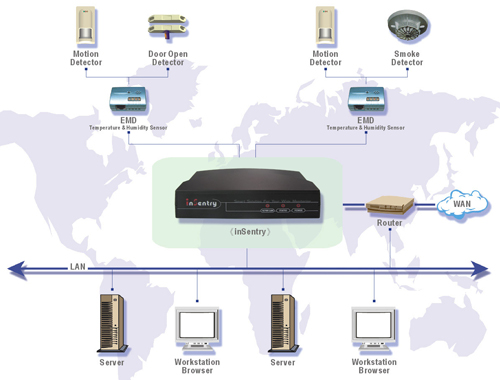

Application

CPU	50MHz micro controller
RAM	512K x 16-bit
Flash ROM	512K x 16-bit
LAN Interface	Auto-sense 10/100Mbps Fast Ethernet
Serial Port	Two asynchronous serial ports for EMD and console communication
LED Display	Power, Status, LAN 10/100 Link
Miscellaneous	Real-Time-Clock, Reset button
Power Adapter	Input: 100V ~ 240V 50Hz ~ 60Hz   Output: 12 volt unregulated
Power Consumption	3 Watts maximum
Network Protocol	HTTP, SNMP, DHCP, BOOTP, ARP, RARP, Telnet, SMTP, TFTP
MIB Supported	InS MIB
Firmware Upgrade	Network Upgrade   Serial Upgrade (for recovery use)
System Security	IP-based filtering and password protection for operation and administration
Operating Environment	Temperature: 0°C ~ 40°C   Humidity: 10% ~ 80% non-condensed
Approval	CE, FCC Class B
Dimensions	5.24(W) x 3.46(D) x 1.06(H) in. / 133(W) x 88(D) x 27(H) mm
Weight	Approx. 200g
Warranty	Two years



Temp.Monitoring	Measures temperatures between 0ºC and 80ºC with an accuracy of +1ºC
Humidity Monitoring	Measures relative humidity between 10% and 90% RH with an accuracy of +3%
LED Display	Power/Status
Digital Input	Two inputs (normally-open or closed)
Dimensions	2.26(W) x 1.48(D) x 1.15(H) in. / 57.4(W) x 37.6(D) x 29.2(H) mm
Weight	Approx. 35g



Data Centre / Computer Room / Network Operation Centre Monitoring

Data Centre, Computer Room and Network Operations Centre's need to offer the highest levels of monitoring and data protection. They are often required to provide service on a 24 (hour) x 7 (day) x 52 (week) basis, designed and provided with network infrastructure, data cabinets, uninterruptible power supplies and air conditioning. All these data centre resources and equipments need to be protected from abnormal situations such as water leakage and rise in temperature or humidity. The INS helps administrators to monitor environmental conditions and prevents your valuable equipment from damages in advance.

Research Lab / Library

Research Labs/ Libraries for science or engineering are equipped with instruments and computers. Some experiments and equipments would be affected by humidly and temperature levels or by a power/voltage fluctuation. Especially for some Labs, the abnormalities will cause serious damages to property or lives. So to prevent this, network of sensors and monitoring devices could be used in the building to monitor the environmental conditions and alert the administrators/users.

Buildings / Warehouse

Air, water, temperature, humidity and security are very important factors in buildings and warehouses which need to be continuously monitored. A water leakage will damage goods, equipments or facilities. Sensors would sense and notify alert messages of water leakage, temperature being high / low, humidity levels and voltage drop elsewhere in a building. Door security alarms and motion detectors would prevent unauthorized intrusion. The benefit of the INS monitoring and reporting such potential problems is reducing the need for regular human inspection which is inefficient in huge buildings, especially with locations difficult to access.

Cold Storage/ Food & Beverage Industry Monitoring

The food and cold storage companies are getting smarter in their approach to monitoring and controlling temperature and humidity, etc. Managing the quality of supply chain in an expanding global market with an increasing variety of food items, fresh, minimally processed and fully processed, requires reliable scientific monitoring. In most cases, temperature frequently must be considered along with relative humidity, which thus must also be monitored accurately. Producers and Venders must strive to maintain the optimal temperature and humidity while doing the production and preservation. Shippers and handlers also need to consider the different requirements of what they transport. Frequently, too much moisture causes problems because it facilitates increased microbial growth. To perform all such accurate operations we had better take advantage of environmental monitoring devices.

Air Conditioner / Refrigerator Monitoring

Air conditioners are indispensable for people who live and work in glassed-in or windowless buildings, or in the warmest and most humid places. Refrigerators are essential to make food fresh for days or weeks. Occasionally, the drain lines of air conditioners / refrigerators may become clogged, resulting in a drain pan overflow, leading to water leaks in your ceiling or walls. The leakage of water or sudden rise in temperature could affect the environment or surroundings. To prevent such unpleasant situations, an environmental monitoring device such as inSentry will be helpful.

Greenhouse Monitoring

The INS is a useful tool for your gardening. With the help of the INS, protecting your plants, grasses, flowers, and shrubs from severe environmental conditions has been easier or more convenient. By monitoring environment condition, you can prepare your garden, greenhouse, nursery, or farm for conditions that benefit plant growth and prosperity. Environment conditions have an effect on the health and proper care of plants. Indoor gardening is a more controlled environment, and fragile buds need the proper temperature and humidity levels to flourish. Temperature and humidity levels are essential for controlling a greenhouse environment. The INS and EMDs ( Environmental Monitoring Device) can help you to monitor humidity as well as temperature.
