CREMS 16 Port Monitoring Device

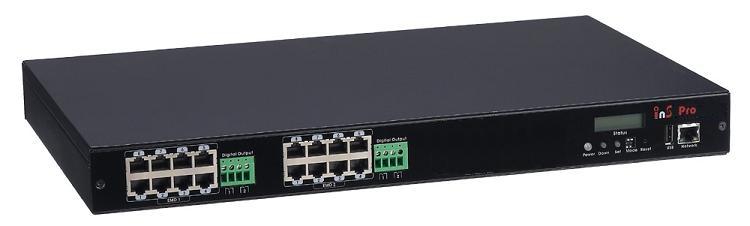

This a picture of a 16 port CREMS Device
  • Web Browser enabled,Java Applet, Details History Logging
  • 16 x Temperature & Humidity Combination Ports
  • 32 x Digital Inputs, 4 x Digital Outputs
  • Built-in LCD, Supports GSM/GPRS Modem, Built-in USB 2.0 port




  1. Real-time monitoring temperature/humidity and other environmental conditions
  2.

  3. Remote configuration for system, sensors and devices
  4.

  5. Event notifications/alerts via SNMP trap, SMS or E-mail when events occur or thresholds are exceeded
  6.

  7. Receive SNMP-based alarms when temperature, humidity, vibration and contact closures vary from defined conditions
  8.

  9. Flexible Configuration via Web Browser, NMS, Java Applet, Telnet and SNMP
  10.

  11. Max. 24 auto-sense ports for connecting EMD(Environmental Monitoring Device)simultaneously and up to 48 sensor devices can be monitored to protect your critical equipments
  12.

  13. Max. 6 digital outputs to trigger extended devices by events
  14.

  15. Regularly records EMD parameters for statistical analysis and event diagnostics
  16.

  17. Java Monitor provides a graphical view of all the principle parameters for the sensor being monitored
  18.

  19. Three models to fit different applications (24 EMD Ports plus 6 Digital Outputs / 16 EMD Ports plus 4 Digital Outputs / 8 EMD Ports plus 2 Digital Outputs)
  20.

  21. Support SSL, SSH and HTTPs protocols
  22.

  23. Address-specific IP security masks to prevent unauthorized access for SNMP
  24.

  25. Daily history report through Email
  26.

  27. Built-in LCD Screen for operations
  28.

  29. USB Port for Keypad/Keyboard
  30.

  31. COM Port for GSM/GPRS Modem
  32.

  33. Rack mountable
  34.

  35. Hot-swappable for EMDs and sensors

*The function may not be included in some versions.
※ The specification may be changed without notice.

Web Browser Screen Shot

This is a picture of a web screen shot of the INS series

Java Applet Screen Shot

this is a picture of a crems java web interface screen shot

This a picture of a 16 port CREMS Device Type: 16 Port INS
Dimensions 1U Rack: Dimensions:442(W)*250(D)*44.3(H) mm
Weight 6kg
Temperature & Humidity Ports 16 Combination Ports
Digital Inputs
32 (2 per EMD)
CPU 32-bit micro controller
RAM 32MB(16M x16 bit)
Flash ROM 8MB
LAN Interface Auto-sense 10/100Mbps Fast Ethernet
LED Display  Diagnostic LED, 2 colors, Green/Red
Miscellaneous Real-Time-Clock, Reset button
Power Adapter Input: 100V ~ 240V 50Hz ~ 60Hz
Power Consumption  Max 40W
Network Protocol HTTP, SNMP, DHCP, BOOTP, Telnet, SMTP, TFTP
MIB Supported inSentry Pro MIB
Firmware Upgrade Network Upgrade
System Security IP-based filtering and password protection for operation and administration
Operating Environment Temperature: 0°C ~ 40°C
Humidity: 10% ~ 80% non-condensed
Approval CE, FCC Class B
Warranty Two years
EMD Port Max. 24 asynchronous serial ports for EMD; Models with 16 ports or 8 ports are also available.
Digital Output 4
Rating: Max 30V DC and 5A

This is a picture of a screen shot for a 24 port CREMS



Data Center / Computer Room / Network Operation Center Monitoring

Data Centre, Computer Room and Network Operations Center need to offer the highest levels of monitoring and data protection. They are often required to provide service on a 24 (hour) x 7 (day) x 52 (week) basis, designed and provided with network infrastructure, data cabinets, uninterruptible power supplies and air conditioning. All these data center resources and equipments need to be protected from abnormal situations such as water leakage and rise in temperature or humidity. InSentry helps administrators to monitor environmental conditions and prevents your valuable equipment from damages in advance.

Research Lab / Library

Research Labs/ Libraries for science or engineering are equipped with instruments and computers. Some experiments and equipments would be affected by humidly and temperature levels or by a power/voltage fluctuation. Especially for some Labs, the abnormalities will cause serious damages to property or lives. So to prevent this, network of sensors and monitoring devices could be used in the building to monitor the environmental conditions and alert the administrators/users.

Buildings / Warehouse

Air, water, temperature, humidity and security are very important factors in buildings and warehouses which need to be continuously monitored. A water leakage will damage goods, equipments or facilities. Sensors would sense and notify alert messages of water leakage, temperature being high / low, humidity levels and voltage drop elsewhere in a building. Door security alarms and motion detectors would prevent unauthorized intrusion. The benefit of the inSentry II monitoring and reporting such potential problems is reducing the need for regular human inspection which is inefficient in huge buildings, especially with locations difficult to access.

Cold Storage/ Food & Beverage Industry Monitoring

The food and cold storage companies are getting smarter in their approach to monitoring and controlling temperature and humidity, etc. Managing the quality of supply chain in an expanding global market with an increasing variety of food items, fresh, minimally processed and fully processed, requires reliable scientific monitoring. In most cases, temperature frequently must be considered along with relative humidity, which thus must also be monitored accurately. Producers and Venders must strive to maintain the optimal temperature and humidity while doing the production and preservation. Shippers and handlers also need to consider the different requirements of what they transport. Frequently, too much moisture causes problems because it facilitates increased microbial growth. To perform all such accurate operations we had better take advantage of environmental monitoring devices.

Air Conditioner / Refrigerator Monitoring

Air conditioners are indispensable for people who live and work in glassed-in or windowless buildings, or in the warmest and most humid places. Refrigerators are essential to make food fresh for days or weeks. Occasionally, the drain lines of a ir conditioners / refrigerators may become clogged, resulting in a drain pan overflow, leading to water leaks in your ceiling or walls. The leakage of water or sudden rise in temperature could affect the environment or surroundings. To prevent such unpleasant situations, an environmental monitoring device such as inSentry II will be helpful.

Greenhouse Monitoring

The INS Series is a useful tool for your gardening. With the help of the INS Series, protecting your plants, grasses, flowers, and shrubs from severe environmental conditions has been easier or more convenient. By monitoring environment condition, you can prepare your garden, greenhouse, nursery, or farm for conditions that benefit plant growth and prosperity. Environment conditions have an effect on the health and proper care of plants. Indoor gardening is a more controlled environment, and fragile buds need the proper temperature and humidity levels to flourish. Temperature and humidity levels are essential for controlling a greenhouse environment. The INS Series and EMDs ( Environmental Monitoring Device) can help you to monitor humidity as well as temperature.
